16" x 16' THERMA-FLITE SINGLE SCREW HOLOFLITE DRYER - CARBON STEEL

(1) 16" x 16' Therma-Flite Single Screw Holoflite Dryer - Carbon Steel

MFD.BY: Therma-Flite, Benicia, CA

DATE MFD: 2008 TYPE: Holoflite shaft Dryer/ Cooler

MODEL: SC16-16-6 Style A

NUMBER SCREW(S): 1 DIAMETER-SCREW(S): 16" LENGTH-SCREW(S): 16'

MAT'L CONSTRN-SCREW(S): CS

MAT'L CONSTRN-TROUGH: CS

MAT'L CONSTRN-JACKET: CS

JACKET: Conventional. Full trough and trough end. Conns. 1-1/4" In, 1'' [2] Out

PRESSURE-SCREW(S): 75 psig MAWP @ -20/650Deg F, Hyd 97.5#

PRESSURE-JACKET: 65 psig MAWP @ -20/650Deg F, Hyd 84.5#

FLUID MEDIUM: Liquid heat or cool. Via Johnson 2"LH type RX Rotary Union, 1-1/4" in /out Water 15gpm @ 90Deg F to Jkt. 15gpm to Screw.

DRIVEN BY: 2HP 3/60/230-460v XP. C-face flanged to reducer.

DRIVEN VIA: Gearmotor via chain to drive sprocket, 3:1 red., Sumitomo Mdl CHHJ-6180DBY-319-145TC

RPM-SCREW(S): 0.89-2.67RPM.

PRIOR SVC: Cooling dried cake, 1336PPH, 800Deg F in 120 Deg F out.

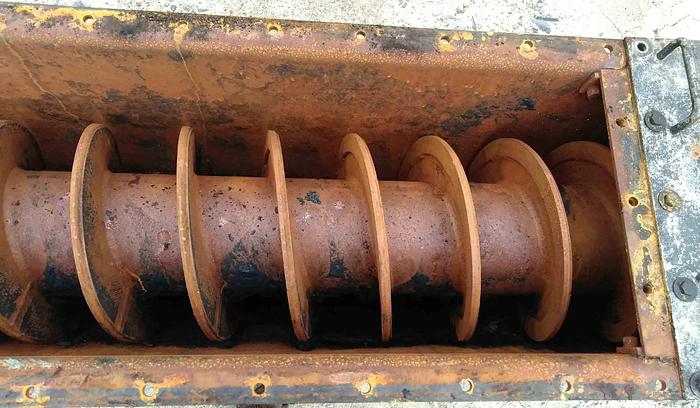

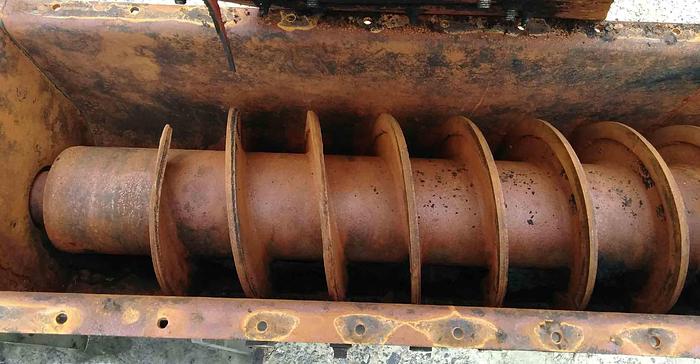

COMMENTS: Rotor shaft is hollow, 8-5/8"OD, Flites are single wall, 16"OD on 6" pitch. Heat transfer surface area: Rotor/shaft 35SF, Flites 32SF/side, Jkt. 49SF approx. 4-piece flat top cover. Stuffing box shaft end seals; External bearing housing at non-driven end, with 3-7/16" ID bronze bushing type bearing & 5 @ 3/8"sq.John Crane style G58 flexible graphite packing rings. Drive end pillow block brg. 4-7/16"dia w/4 @ 1/2''sq. packing rings, 1 Lantern ring plus a 1/4" purge line in the stuffing box housing, 0.1SCFH @ 3.5H2O purge gas. 10" x 17"flanged in/10" dia out. Trough 17-1/4"inside width, 3/8'' thick. Jacket 5/16" thick. Max. Capacity approx.1400 PPH Varies dependent on RPM, product type, moisture content/evaporation rate/temp. Design 15Deg incline in last svc.

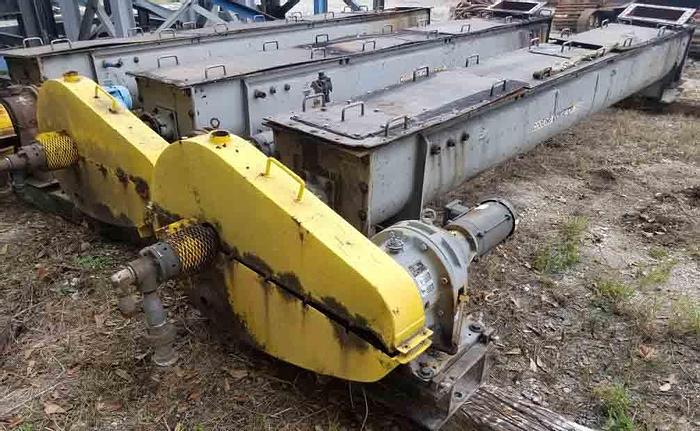

SHIPPING SIZE-W X H X L: 4'2''W X 2'6''H X 20'L

APPROX. WEIGHT-LBS: 5900#
