NASH MODEL L2BE45202BY4C006 LIQUID RING VACUUM PUMP SYSTEM

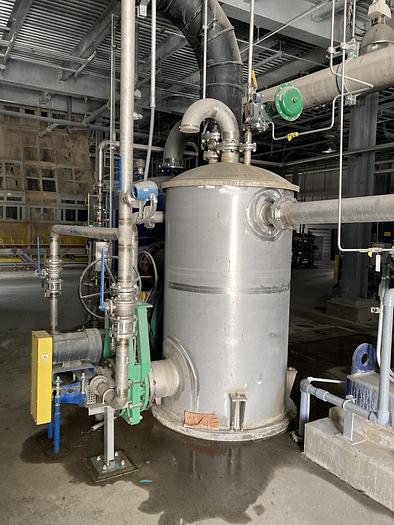

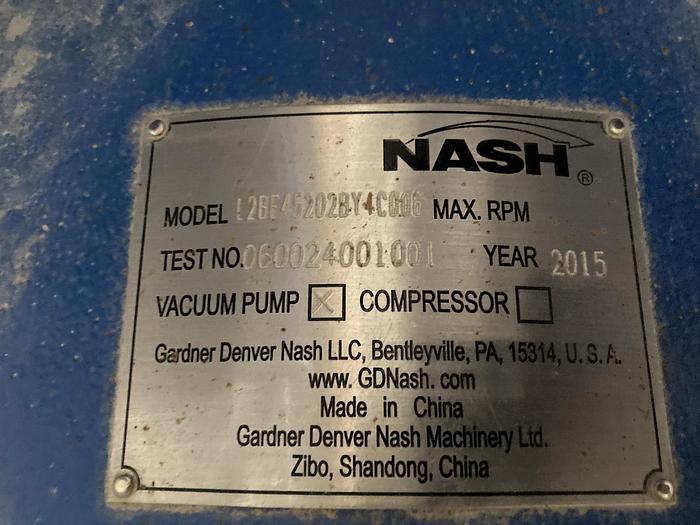

 1 - Used Nash Model L2BE45202BY4C006 Liquid Ring vacuum pump system. Test No. 060024001001. Pump has a polyisoprene lined body with flexible inlet and discharge connections. 12" flanged inlet and outlet. Rated 5000 - 9375 CFM, 8750-16,000 cubic meters/hour. Driven thru Siemens Model NFJ/46150369-00110 drive. Input 1800 RPM, Output 363.86 RPM. Powered by WEG W50 400 HP 3/60/4160 volt motor. Equipped with EnerFab 658 gallon 316.316L stainless steel vertical seal water tank. 4' diameter X 7' high straight side. Rated ATMOS @ -20 to 200F. Dished top, flat bottom. Top fittings: (1) 2", (1) 4", (1) 6", (1) 6" side top, (1) 2" side bottom. Has (2) 12" side bottom outlets to (2) Carver type 855-OH 1.5 X 9 CD4 pumps powered by 7.5HP 3/60/208-230/460 volt motors. Also has (1) 2000 gallon Carbon Steel/lined vertical filtrate tank. 7' diameter X 7' high straight side. Rated 15 PSI @ 140F. NB# 287. Dished top, flat bottom. Top fittings: (1) 18", (1) 2". 24" side bottom manway, (2) 3" side bottom outlets and (2) 10" side bottom outlets to (2) carver Type 855-OH 3 X 9 CD4 pumps powered by WEG W22 30HP 3/60/460 volt motors. Built 2015. FOB: LOCATION
