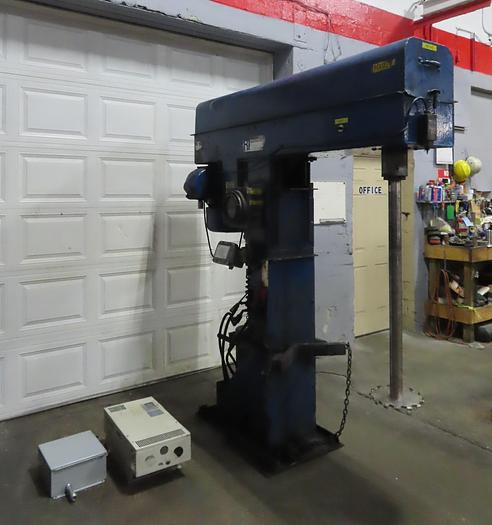

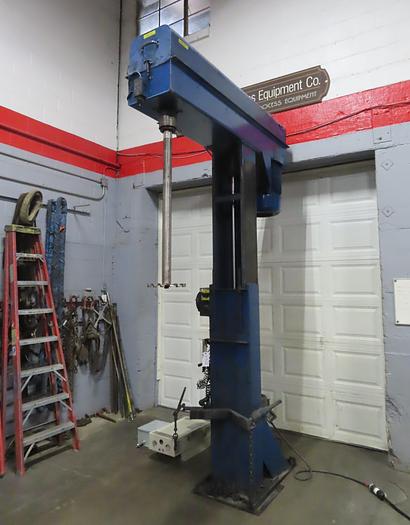

25 HP REYNOLDS HIGH SPEED DISPERSER - UL LISTED

1 - used 25 HP Reynolds High Speed Disperser

Model: RHSD-25

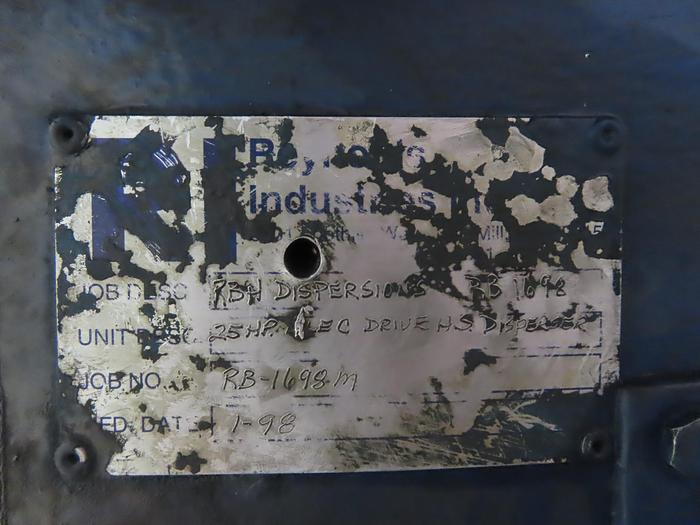

Serial: RB1698M

25 hp, 230/460V, 3 phase, last run on 460V

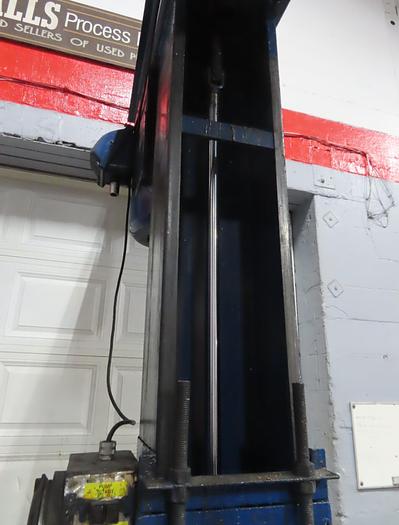

Hydraulic lift and lower

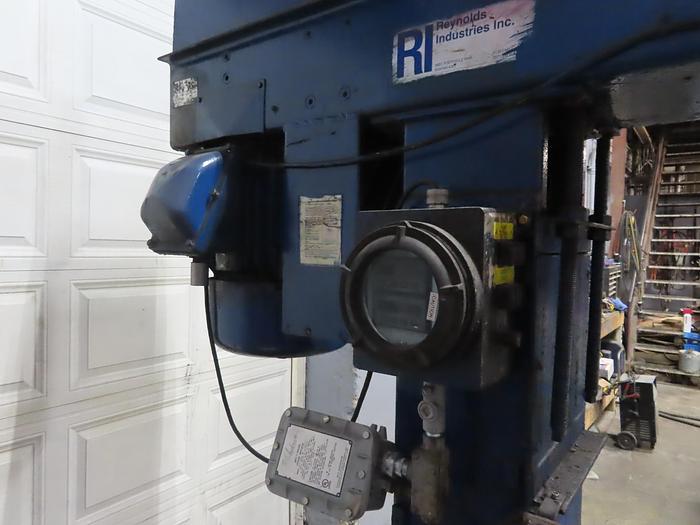

1.5 hp, 230/460V, 3 phase, electric UL tagged motor

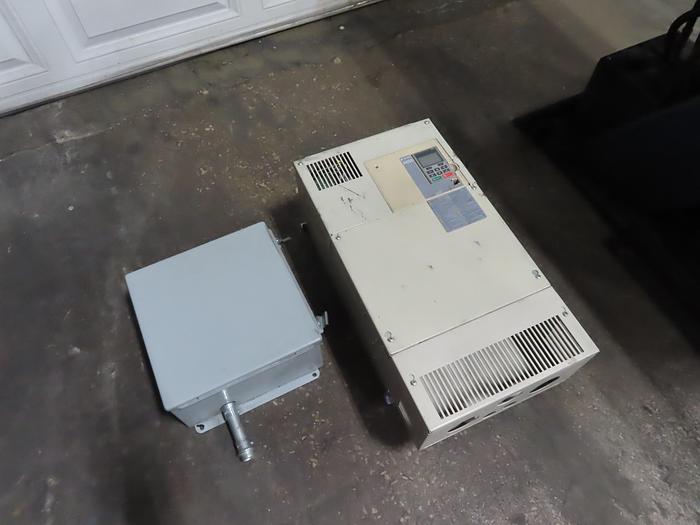

Inverter for variable speed

Pump start/stop buttons

Mixer start/stop buttons

EATON digital readouts

Overall dimensions: 27" wide x 79.5" long x 93" tall

Throat (Center of shaft to column): 32.25"

Throat (Center of shaft to tank holder: Approx. 28"

Shaft length: 42.5"

Floor to blade/shaft: 24"

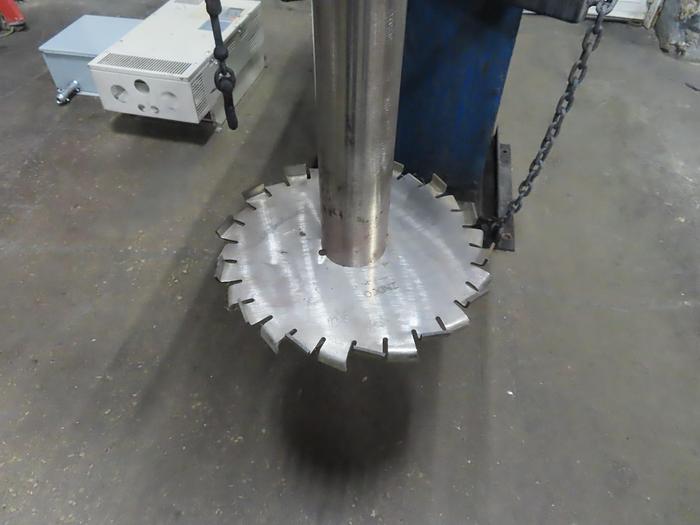

Blade dia.: 10.5"

Blade to floor in up: 66.5"

Height in up: 11' 2.75"

F.O.B. - LOCATION
