36" x 48" PAUL O. ABBE PEBBLE MILL - ALUMINA BRICK LINED

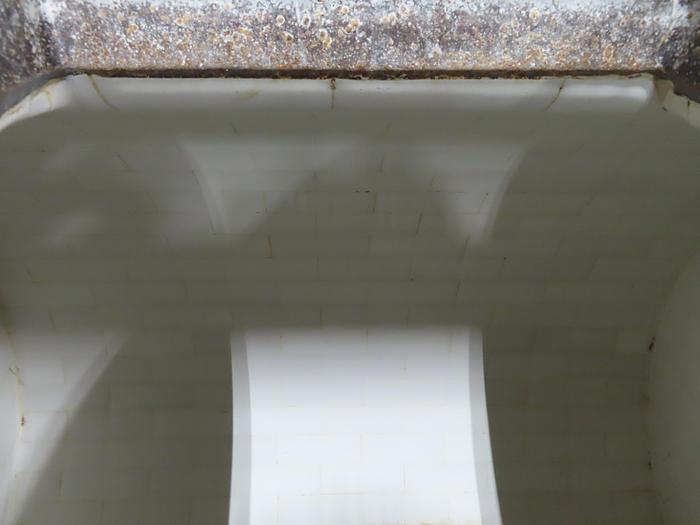

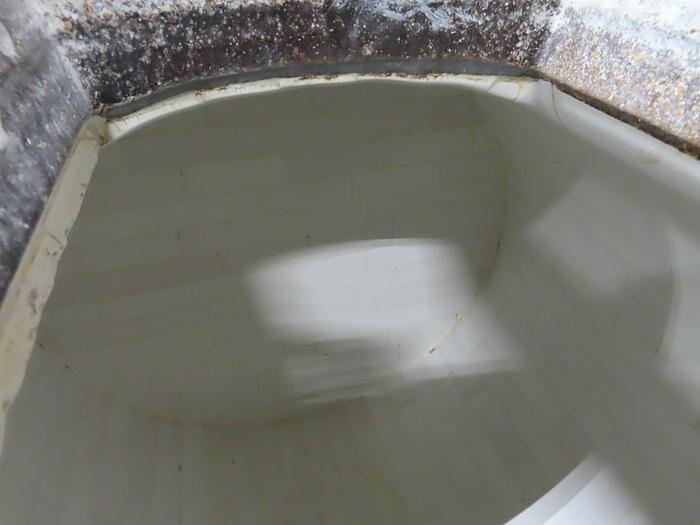

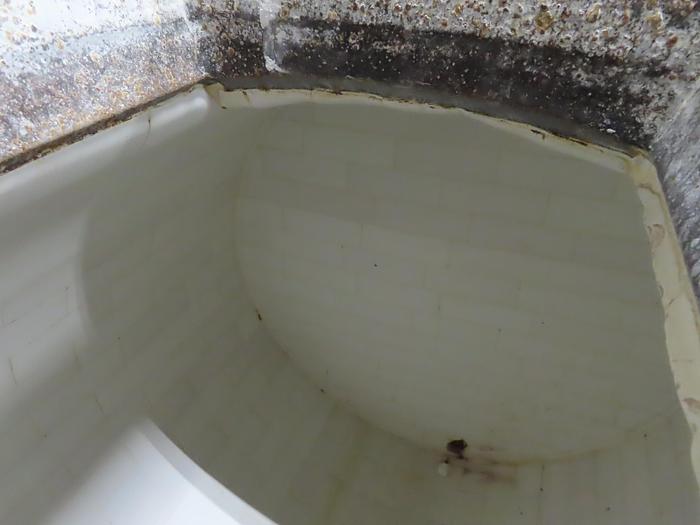

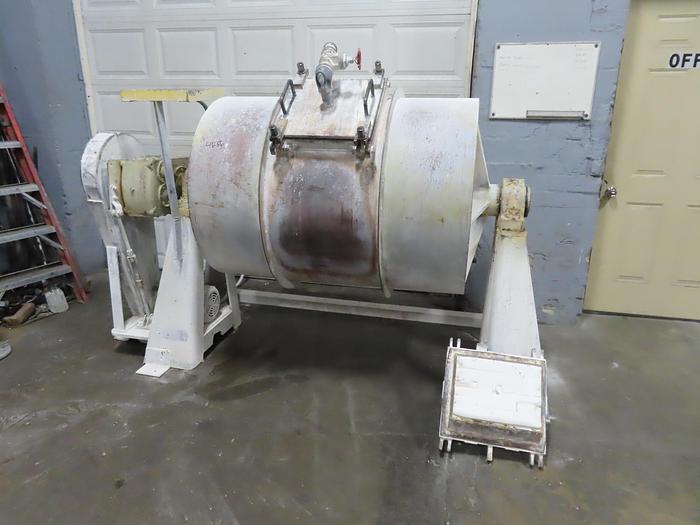

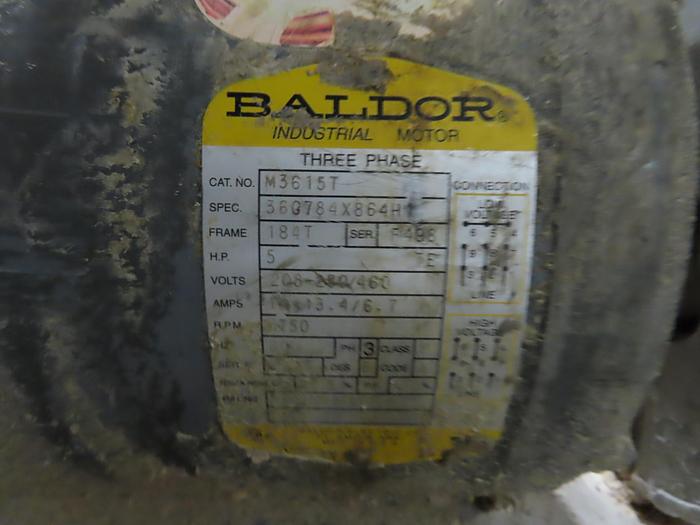

One (1) used 36" X 48" Paul O. Abbe Pebble Mill Model: 5A PM Serial number: A32042. 3' diameter x 4' long chamber Alumina brick lined chamber Lining is in good condition Equipped with lifter bars Outboard roller bearings 5 HP motor, belt driven to a shaft mounted gear reducer On short legs Equipped with grinding door and drain door. Door opening: 13" x 14.5" Approximately 60" from floor to top of mill chamber Footprint: 96" x 38" Test ran on 3 phase, 230V. Includes approx. 1.5 drums of alumina media.
