48" x 42" PATTERSON PEBBLE MILL - ALUMINA LINED - 10 HP

orCall 216-409-1394

Description

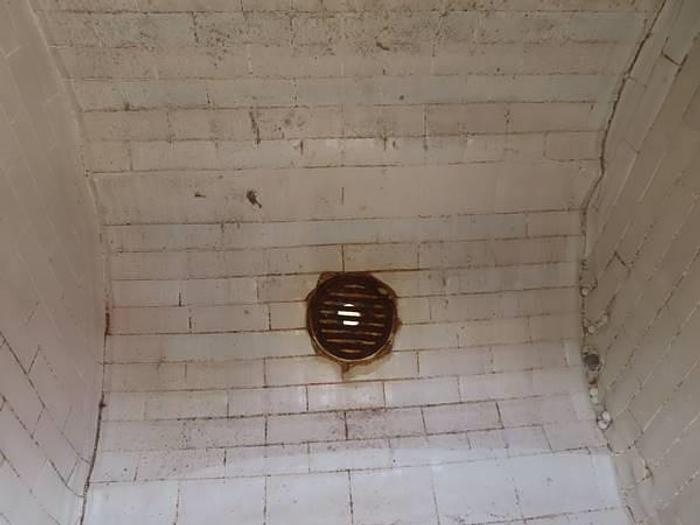

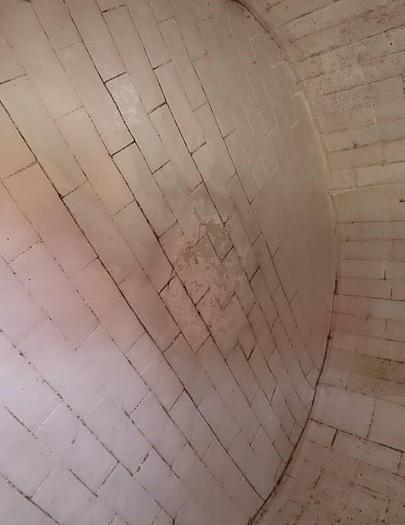

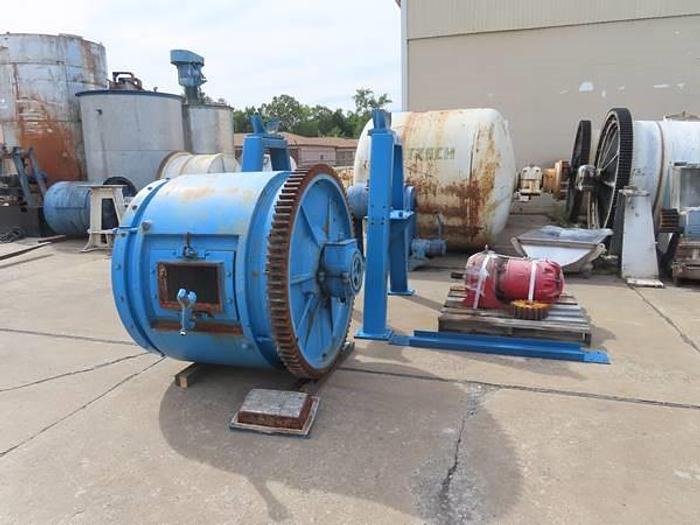

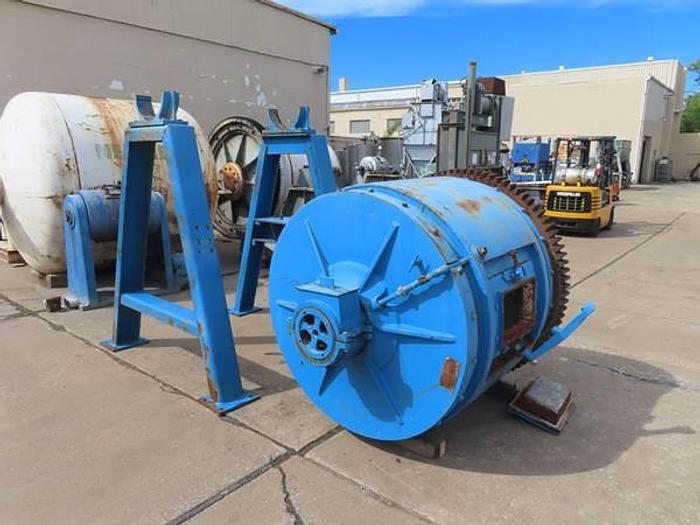

1 - used 48" x 42" Patterson Pebble Mill - Alumina Lined

  • 48" diameter x 42" long chamber

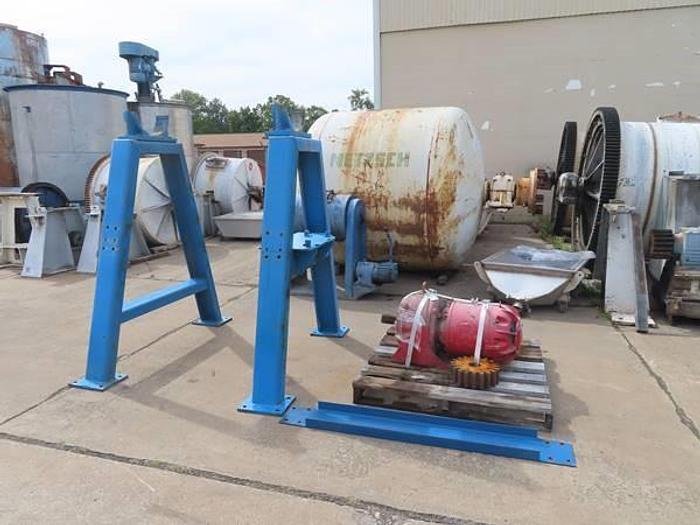

  • On stand with drive
  • 70" high stands, floor to bearing mount
  • Jacketed chamaber, rated for 25 psi
  • Babbit bearings
  • Standard door: 9.5" x 15.25"
  • Liquid drain with ball valve opposite side of door

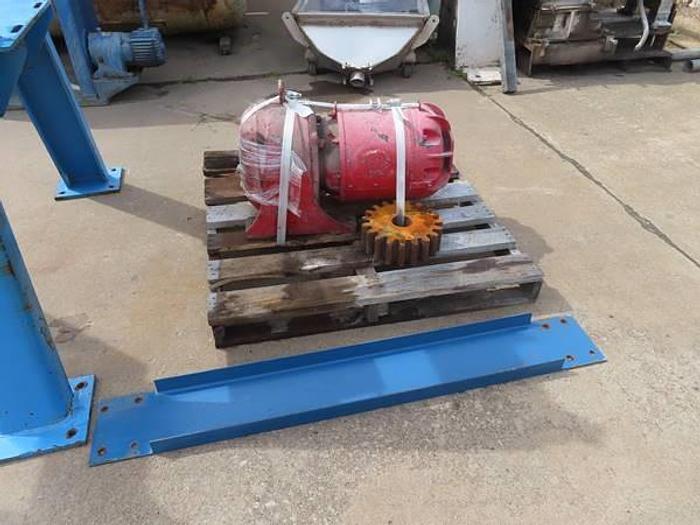

  • 10 hp motor with UL tag for hazardous areas
  • Foote Brothers gear reducer

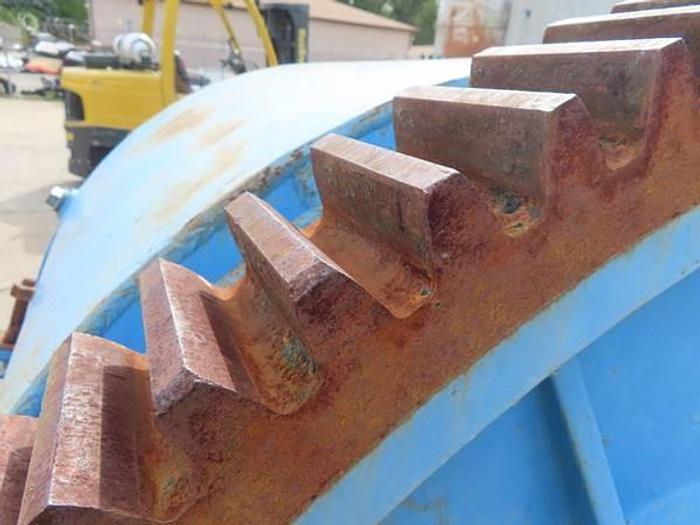

  • Bull gear and pinion gear are in excellent condition



Specifications

ManufacturerPatterson
ConditionUsed
Serial NumberK1299
Stock Number10795
Size (smallest to largest)4842.0
