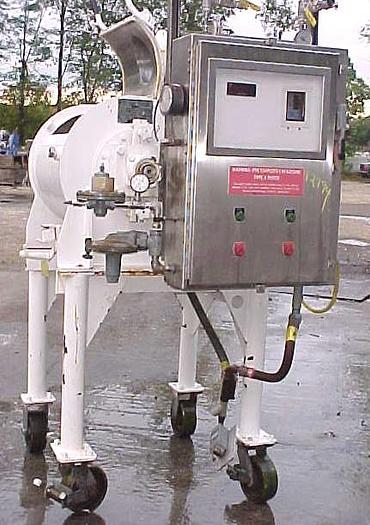

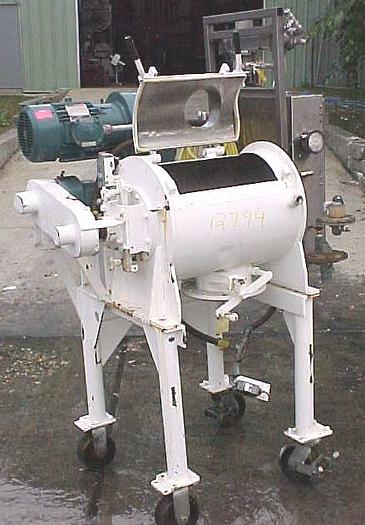

LITTLEFORD/LODIGE MIXER - MODEL FM 130-D - S/S - JACKETED

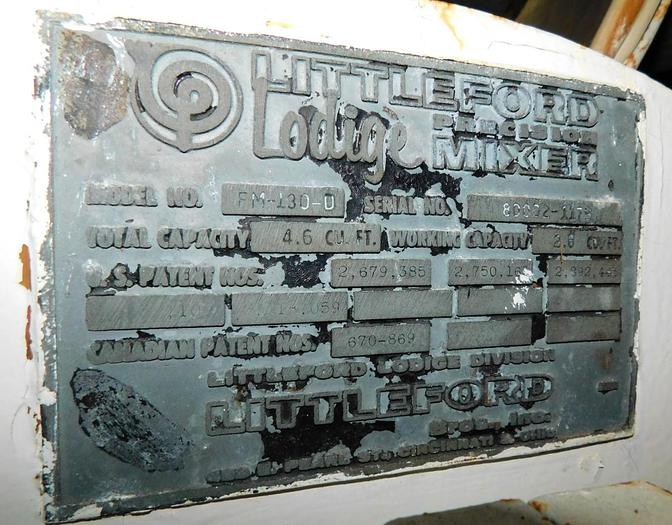

3 cu. ft. working capacity Littleford Lodige Horizontal Mixer.

• 3 cu. ft. working capacity
• 4.6 cu. ft. total capacity
• Model FM 130-D
• Featuring all stainless steel sanitary contact surfaces

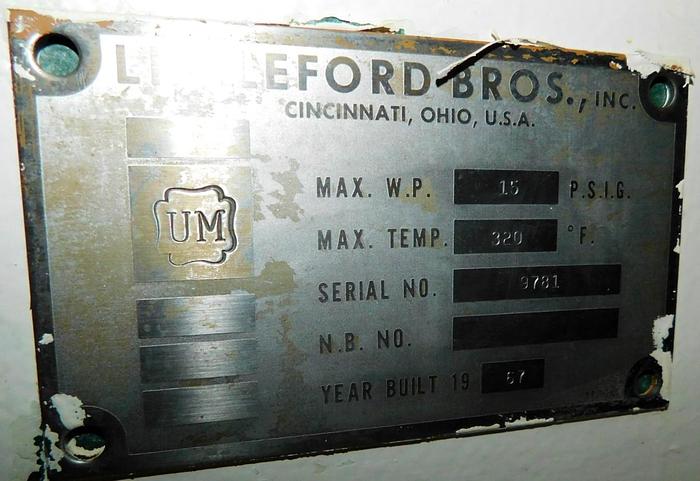

• Fully jacketed body, national board rated (# 9781) for 15 psi @ 320 degrees f

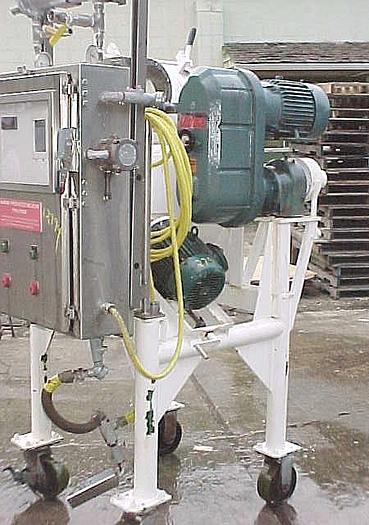

• 7.5 horsepower variable speed Reeves "Ultima" mixer drive, 111-896 rpm
• 5 horsepower chopper drive @ 3480 rpm
• Both drives are explosion proof and rated for class i, groups c & d and class ii, groups e,f & g
• 230/460/3 phase voltage
• standard top hinged body with 20" x 12" full view opening,
• 6" x 5" center bottom discharge with manually operated flush valve
• 10" diameter discharge hood with 16" od eight bolt flanged connection
• 40" floor clearance
• 8" diameter top loading port with 10.5" od flanged connection.

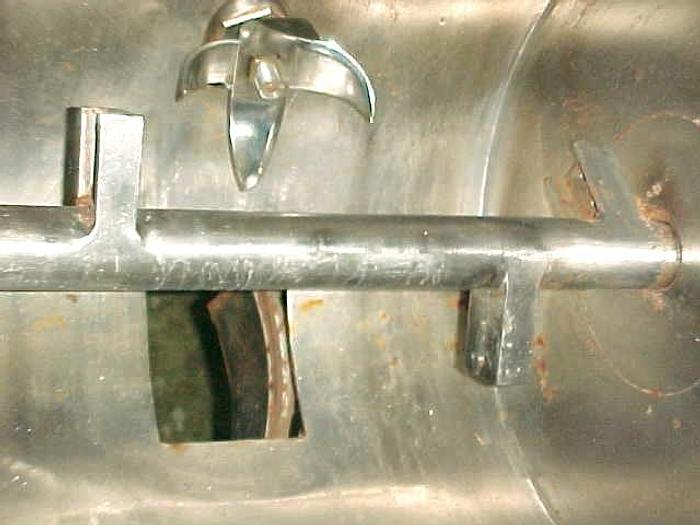

• Mixer has four plow stations and one chopper (plows are required and bolt to existing arms),

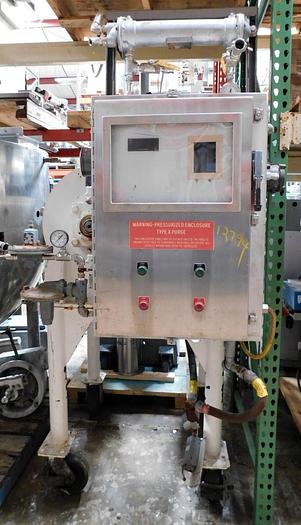

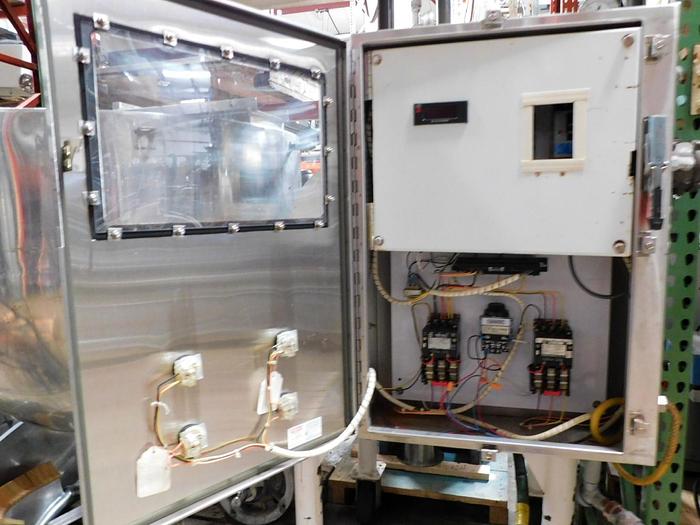

• Includes non factory pressurized control panel containing magnetic starters and mixer timing controls for XP service
• Formerly used in food industry
