WAUKESHA CHERRY BURRELL LABORATORY SCRAPE SURFACE HEAT EXCHANGER BY VOTATOR - S/S

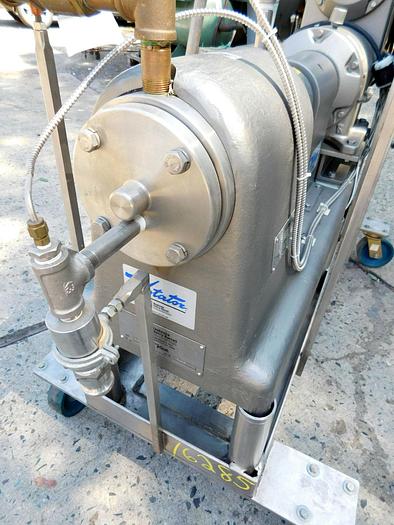

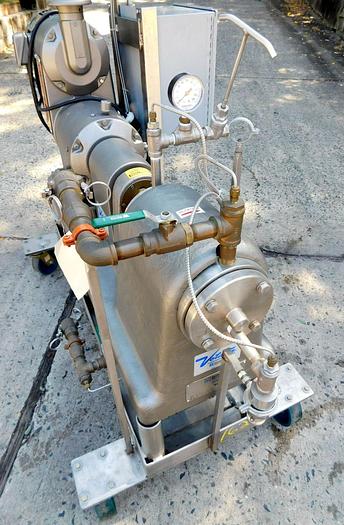

1 - USED LABORATORY SCRAPE SURFACE HEAT EXCHANGER BY VOTATOR (WAUKESHA-CHERRY-BURRELL)

• S/S Wetted Parts
• 3" D x 12" L Barrel

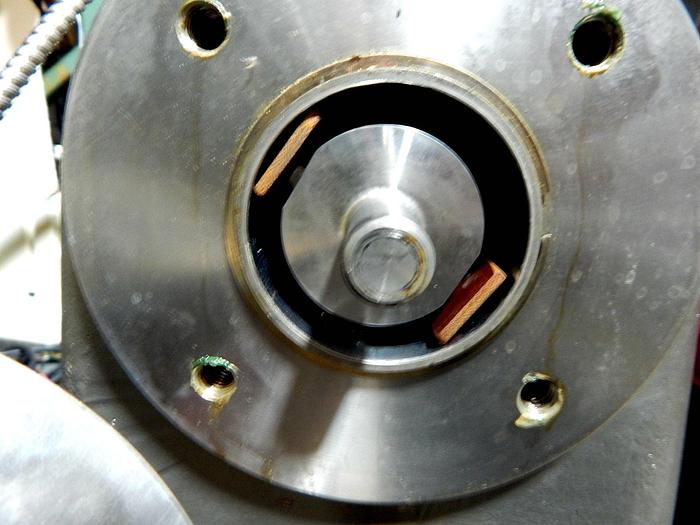

• Dia. 2.5" with a Two (2) Blade Rotating Mutator Shaft
• Rated 400 PSI at 375° F on Chamber Shell
• Rated150 PSI at 375° F for the Jacket
• Mutator Shaft is Directly Driven by Reliance 5 HP Adjustable Speed Drive
• 45 - 450 RPM
• 230/460/3 Phase Voltage (Wired for Low Voltage - 3 PH)

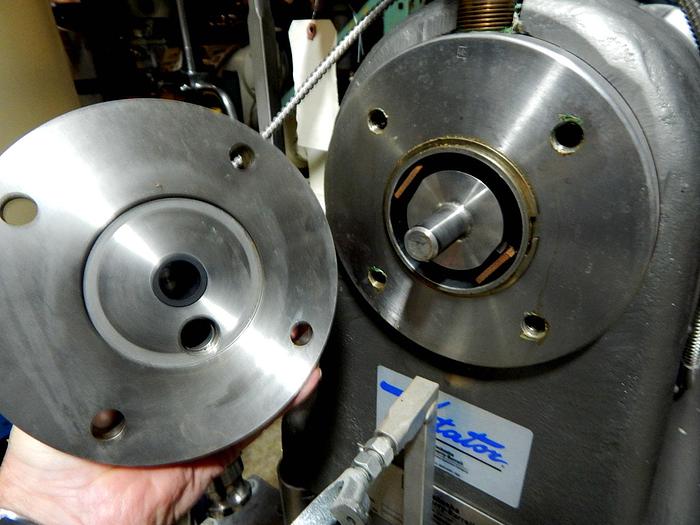

• Mechanical Rear Main Seal has Flushing Capabilities

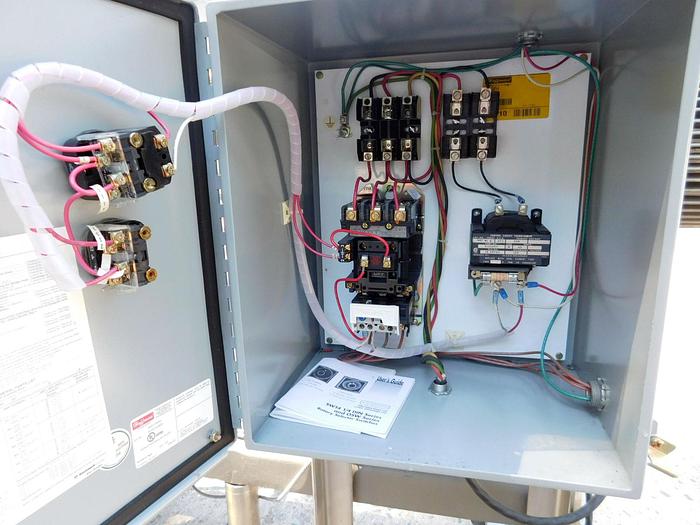

• Factory Controls Featuring Products Inlet / Outlet

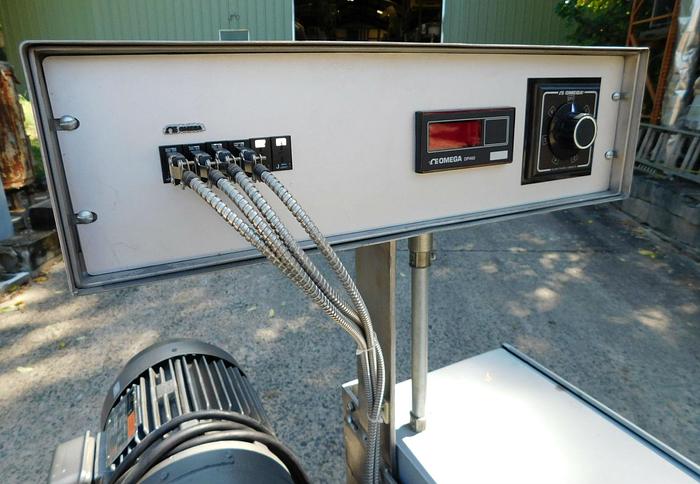

• Jacket has In / Out Temperature Sensing Single Digital Readouts with a Multifunction Selection

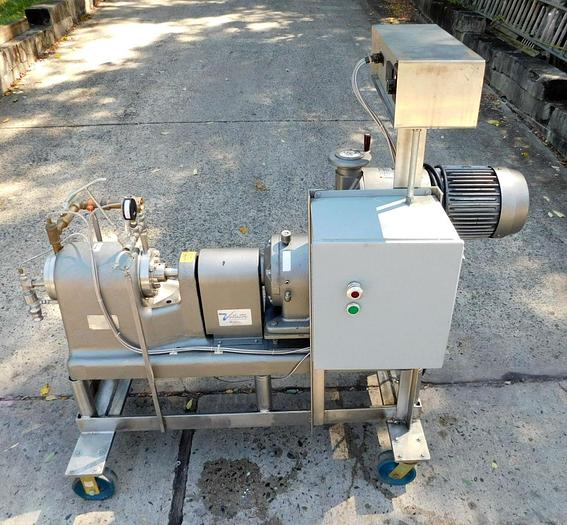

• Mounted on an Elevated S/S Stand with Casters
• Formerly Used in a Cosmetics Product Development Line
