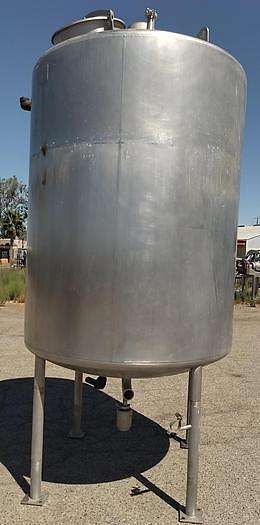

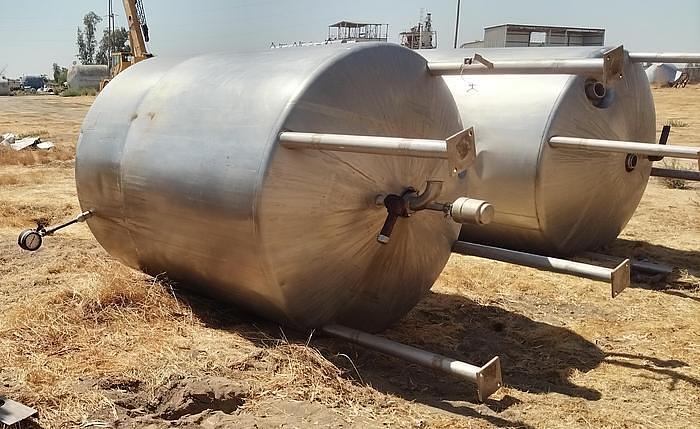

850 GALLON CE HOWARD MIX TANK - S/S - JACKETED

1 - Used C.E. Howard 850 Gallon Agitated Tank

• Constructed of T-304 S/S
• Vessel Measures 5' Diameter X 6.5' Straight Side with Dished Top and Bottom (7''1" Internal Height from Dish to Dish)

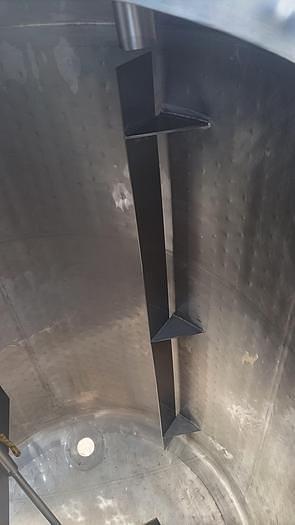

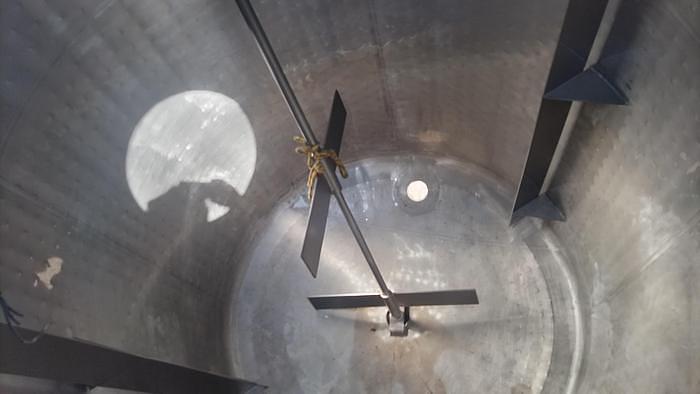

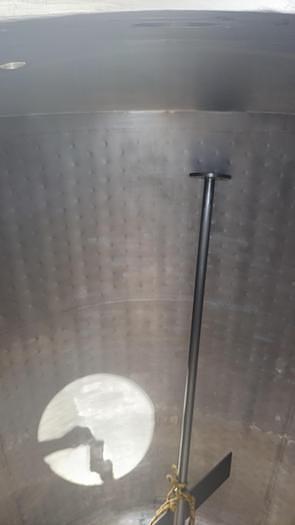

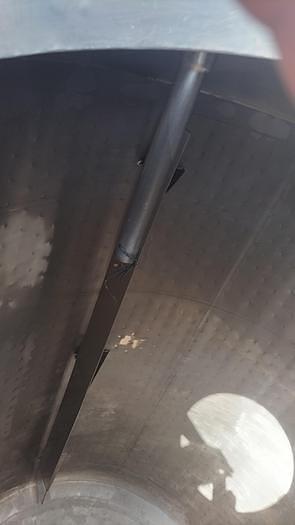

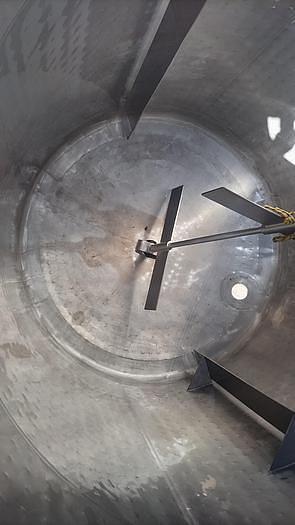

• Internals Includes (2) Baffles and Top Entering Agitator Shaft with Two sets of 2-Blade Paddles
• Driven by Top Mounted Drive Through Gear Reducer
• 2 HP, 1700 RPM, 230/460V, 3/60Hz, SEW EuroDrive Gear Motor Resulting in 61 Output RPM

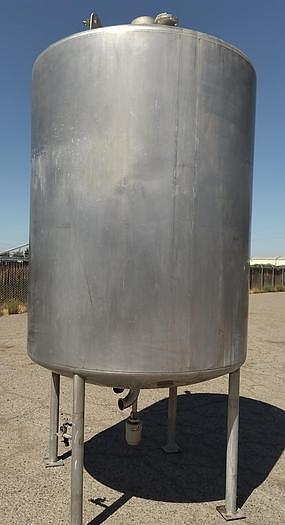

• Vessel is Mounted on 3'3" High S/S Legs

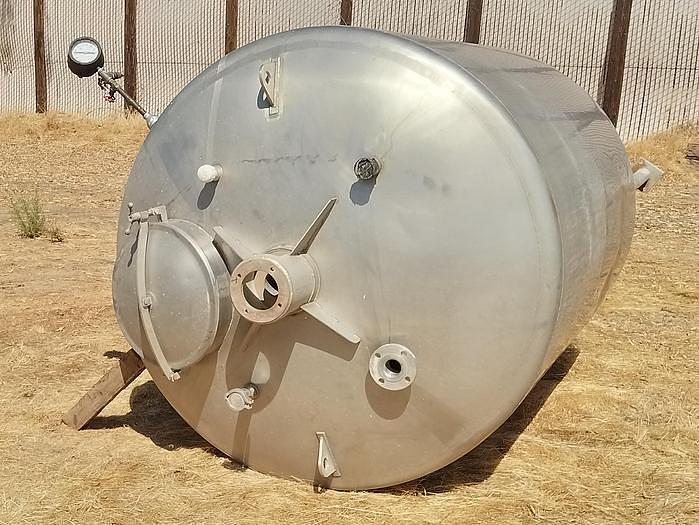

• Top Head Includes 20" Diameter Manway
• 8" Diameter Flanged Connection for Motor Mounting and (4) 2" Inlets
• Bottom Head Includes 3" Diameter Center Bottom Outlet
• Also, Includes 2" Diameter Jacket Connections
• Vessel is Fully Jacketed with Dimpled Jackets on Straight Side and Bottom Head

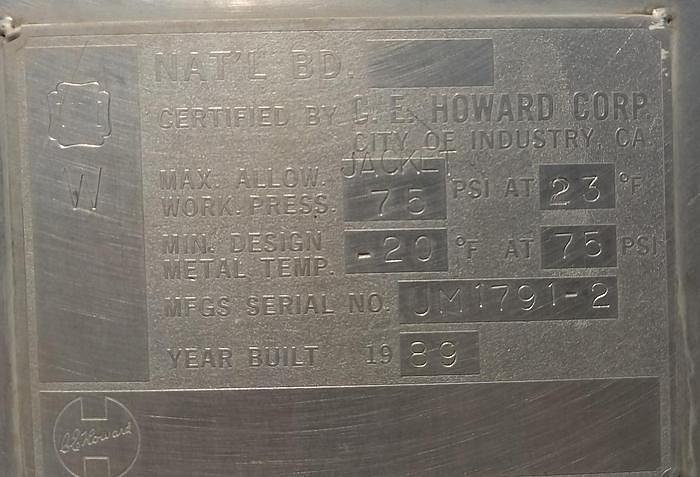

• ASME Rated Jacket
• Rated for 75 PSI
• Tank was Used for Beverage Processing
