2000 IKA PROCESS PILOT HOMOGINIZER EMULSIFIER

1 - USED 2000 IKA PROCESS PILOT HOMOGINIZER EMULSIFIER

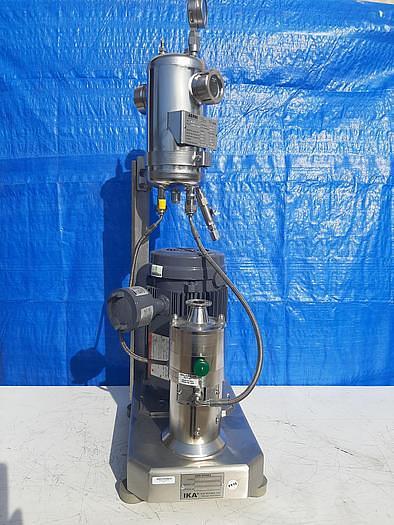

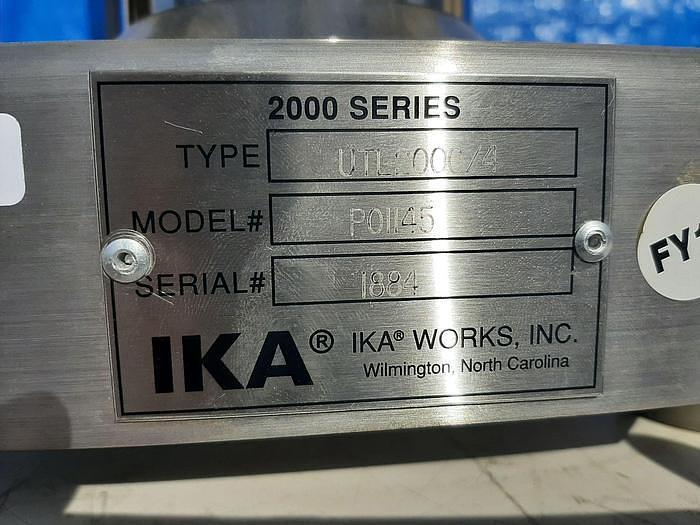

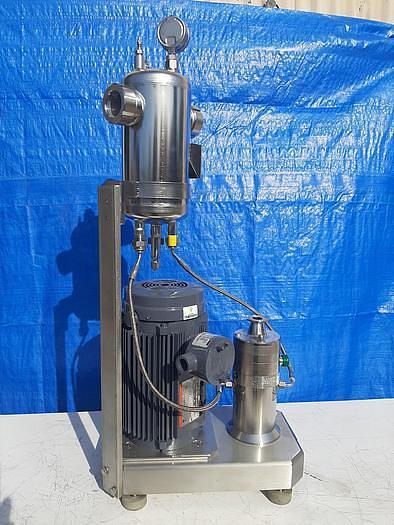

• IKA PROCESS-PILOT 2000/4 homogenizer / emulsifier
• designed for solid-liquid mixing
• rated for up to 500 liters per hour
• Type UTL
• compact multipurpose inline laboratory dispersion machine

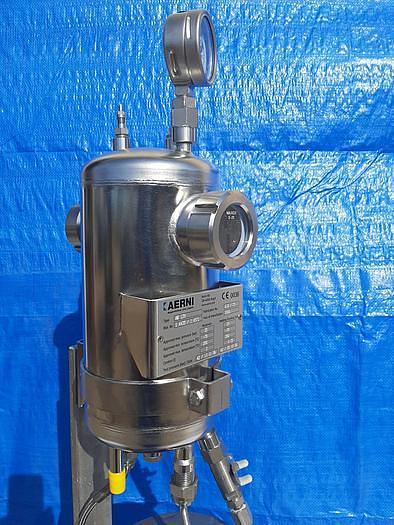

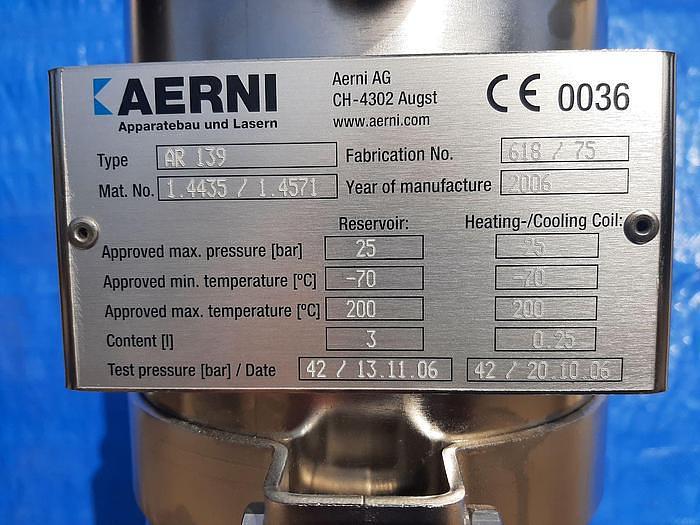

• 3-Liter Aerni AR 139 pressure seal tank
• Includes 316 stainless steel contact parts

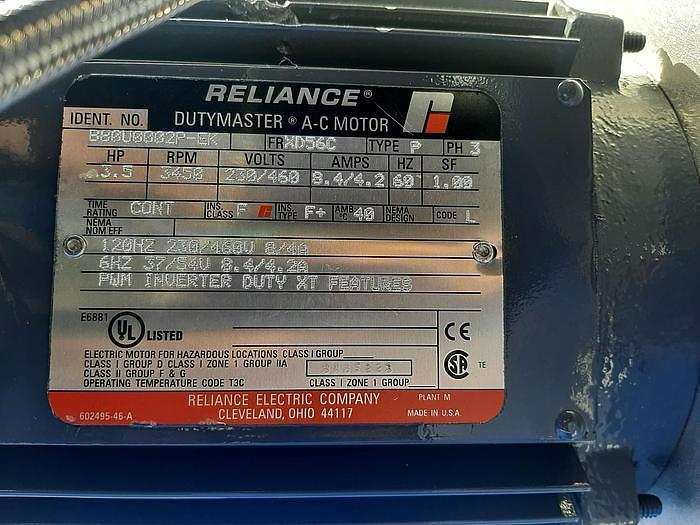

• Power supply: 3.3 HP, 230/460 V, 3/60 Hz, 3450 RPM
• Previously used in pharmaceutical application.

Manufacturer Specifications:

• Maximum temperature: 120 degrees Celsius
• Maximum pressure: 10 bar (150 PSI)
• Maximum flow capacity (H20): 500 liters per hour
• Circumferential speed at 60hz: 23 meters per second
• Rotational speed: 7,900 RPM
• UTL basic module, Single stage, standard module, design for simple, UTL homogenization tasks
