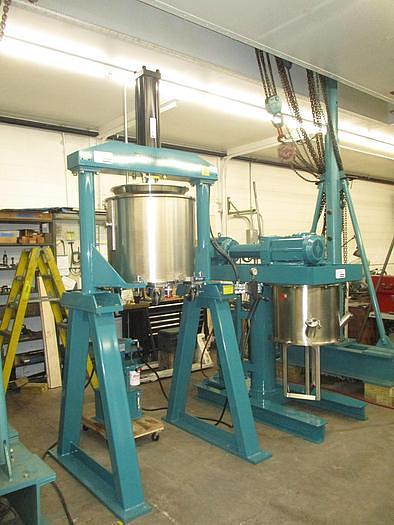

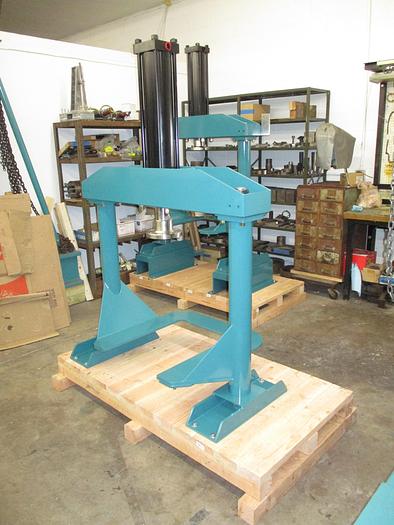

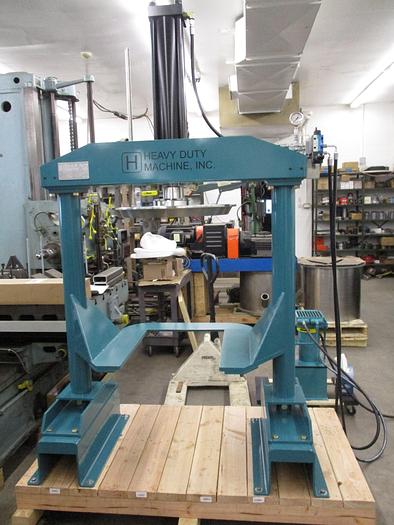

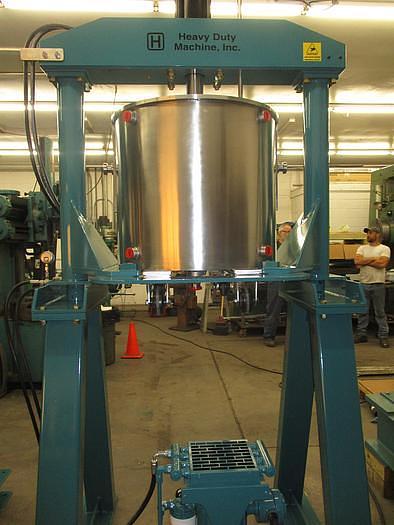

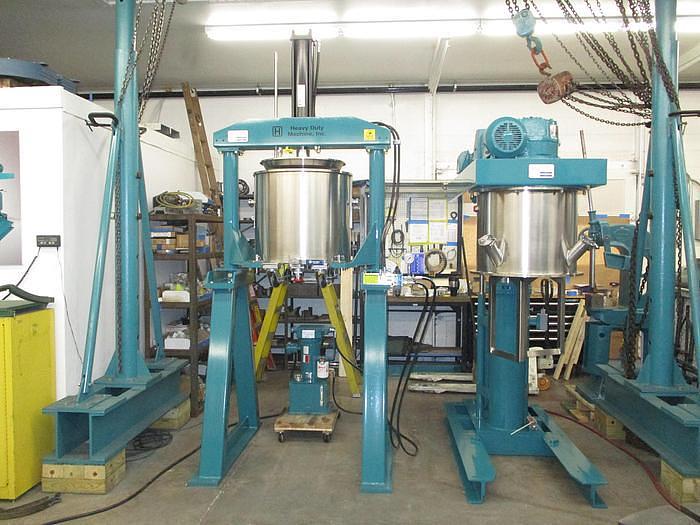

NEW 40 GALLON DISCHARGE RAM SYSTEM FOR DOUBLE PLANETARY MIXER

orCall 216-409-1394

Description

(1) NEW HDM-DS-40 DISCHARGE RAM SYSTEM

  • To be used with standard 40 gallon Heavy Duty Machine or Ross mix cans.
  • Standard design rated for up to 50 psi under the platen (Higher pressures can be quoted)
  • Special conical designed platen & large diameter O-ring design for use with non-internally machined mix cans.
  • Built in heat exchanger on Hydraulic Power Unit (HPU) standard.
  • HPU normally shipped loose for customer mounting either nearby or remotely as desired.
  • HPU can be mounted on the unit with optional fabricated shelf/bracket.
  • Optional specially designed risers made to order per customer requirements.
  • Lead time 8 to 10 weeks (subject to supply chain)


Terms: 50% With Order, Balance Upon Completion Of Construction,

Prior To Shipment

Specifications

ManufacturerHeavy Duty Machine, Inc.
ModelHDM-DS-40
ConditionNew
Stock Number11112
Size (smallest to largest)40.0 Gallon
