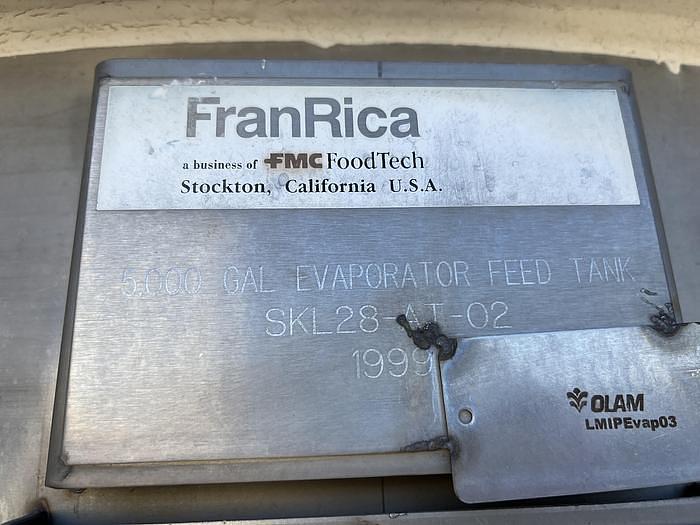

5000 GALLON HICKS EVAPORATOR FEED MIXING TANK - S/S - 15 HP

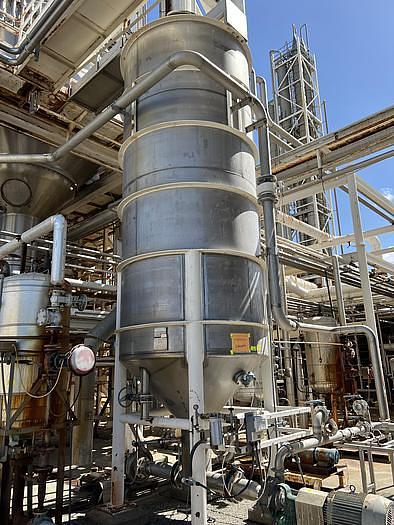

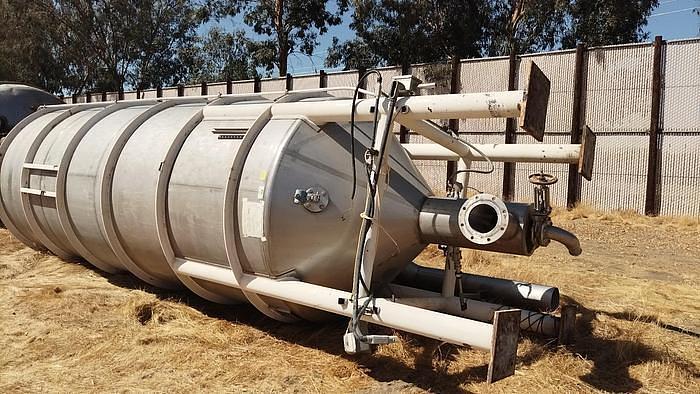

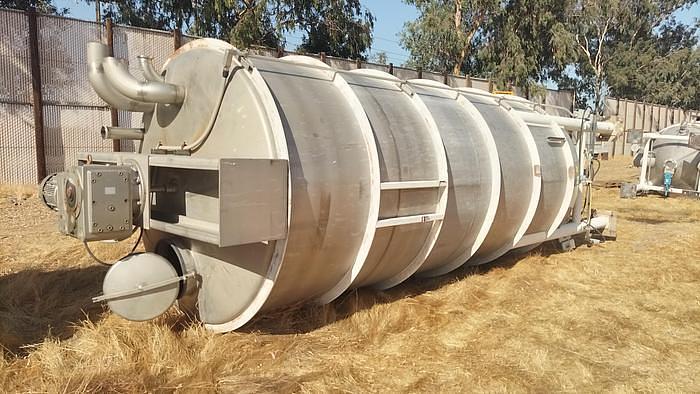

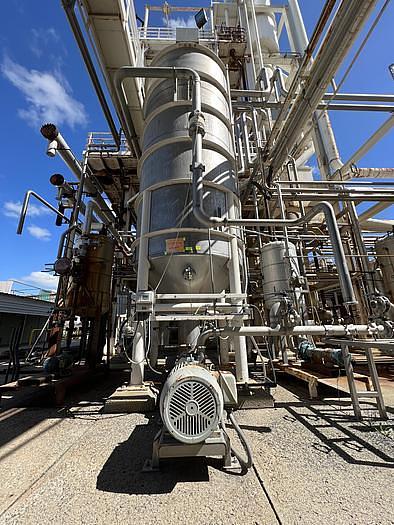

1 - USED 5000 GALLON HICKS EVAPORATOR FEED TANK W/ BRIDGE MOUNTED AGITATOR

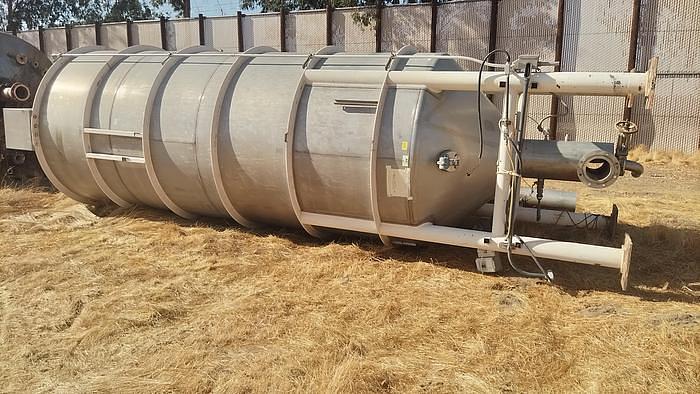

• Vessel Measures 84" IN. Diameter x 16' FT. Straight Side With 4' FT. Deep Cone Bottom

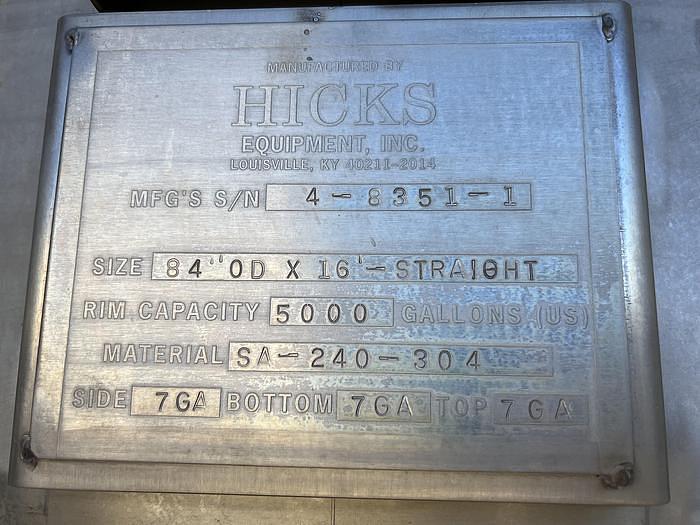

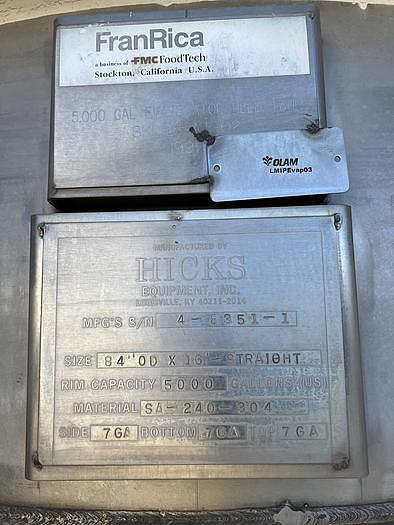

• S/S SA-240-3047 Gauge Side, Bottom, and Top Wall Thickness
• Includes Top Bridge-Mounted Agitator Drive

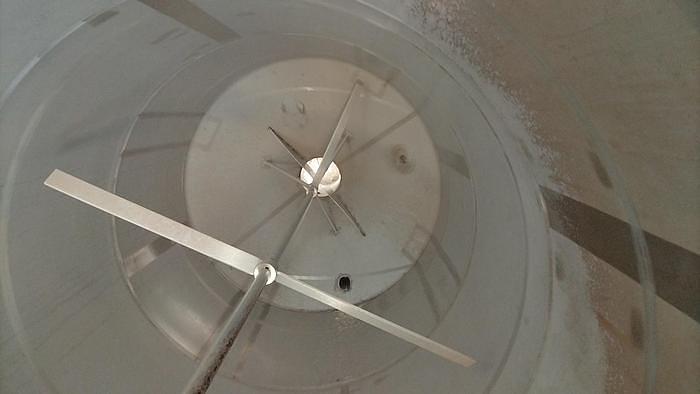

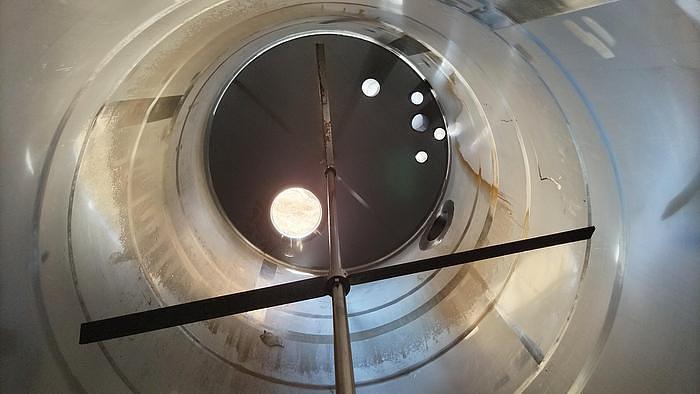

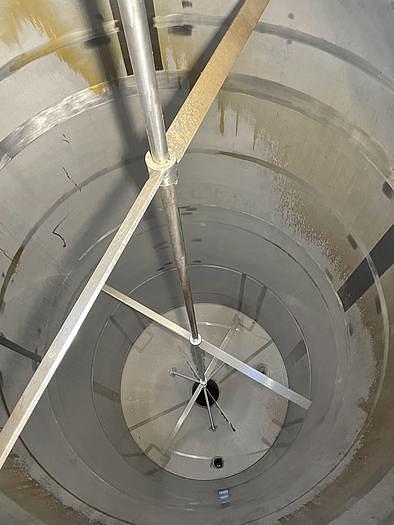

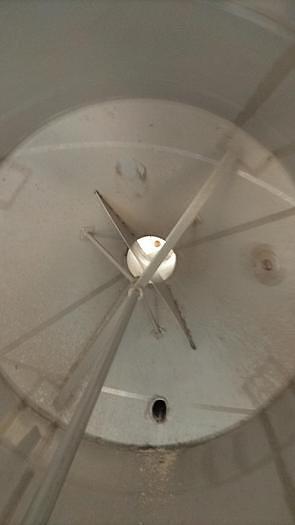

• (3) 2-Blade Wide Sweep Paddles Along 2" IN. Diameter Common Shaft
• Mixing Blades Measure 6' FT.2" IN. Total Length & 3/4" IN. Thick

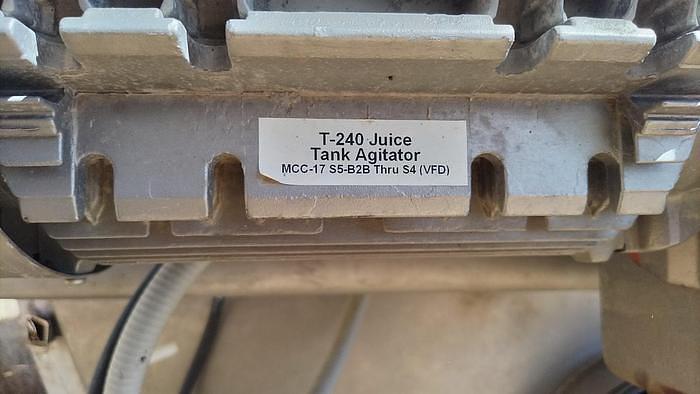

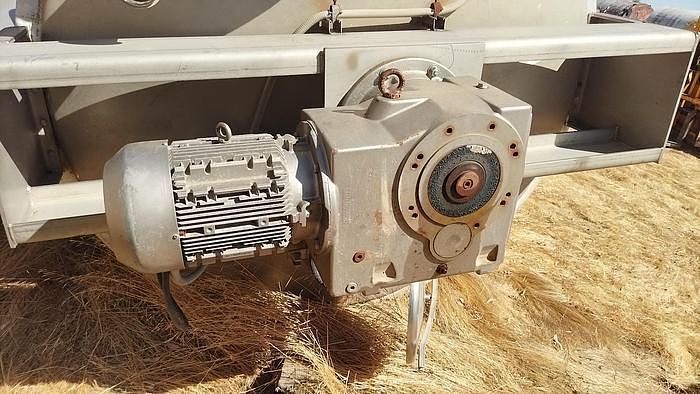

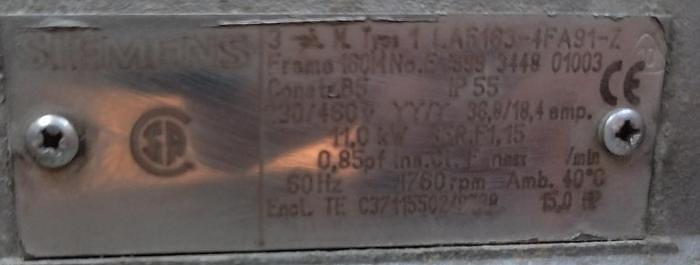

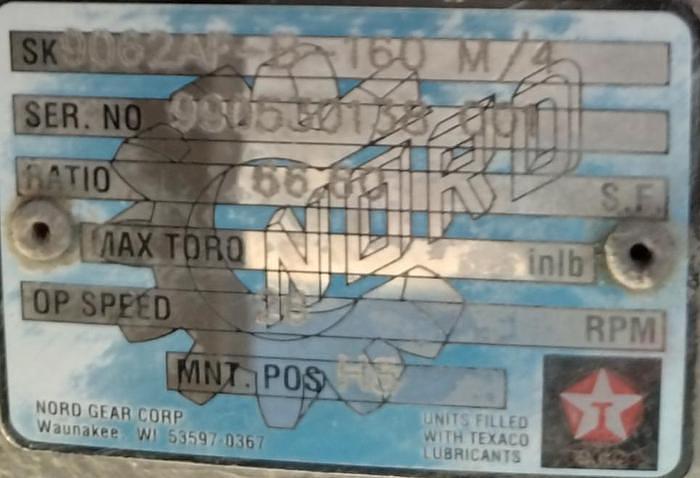

• Agitation Driven by Siemens 15 HP, 1760 RPM, 230/460V, 3/60Hz Motor Thru Nord Gearbox with 66.50:1 Ratio, Resulting in 26.5 Output RPM

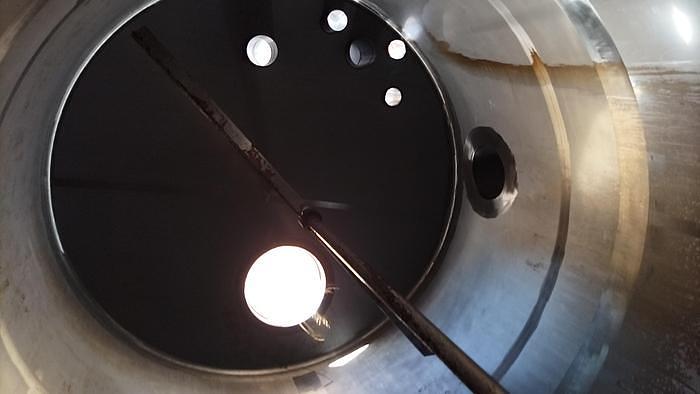

• Top Head Includes 18" IN. Diameter Top Manhole, (3) 4" IN. Inlets, (2) 6" IN. Inlets & 12" IN. Diameter Overflow Pipe.

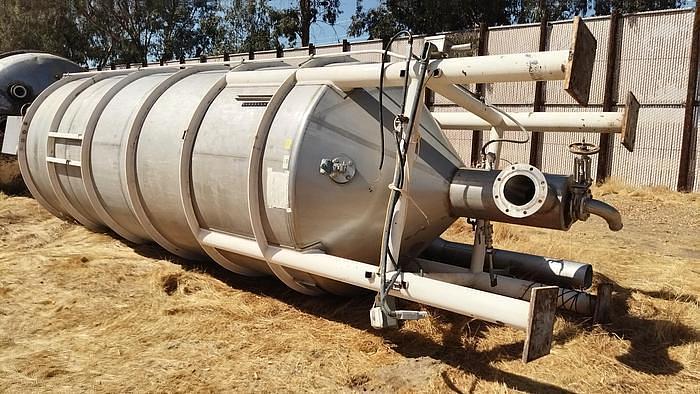

• Bottom Head Includes 16" IN. Center Bottom Outlet, Leading to 3" IN. Center Bottom Outlet, as well as (1) 8" IN. & (1) 7-1/2" IN. Flanged Side Outlets
• Mounted on Mild Steel Legs
• Overall Height is 25' FT. 3" IN. High

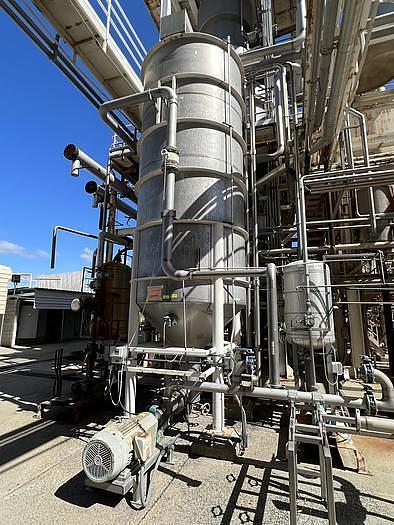

• Previously Used in Food Processing Facility
