1,000 GALLON APV CREPACO TANK - S/S - JACKETED - WITH CONE BOTTOM

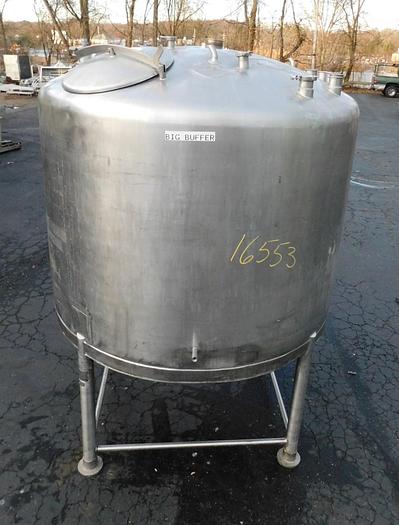

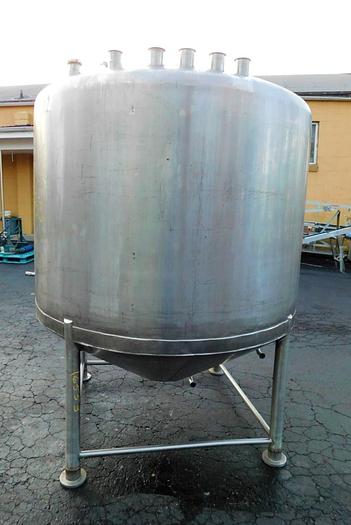

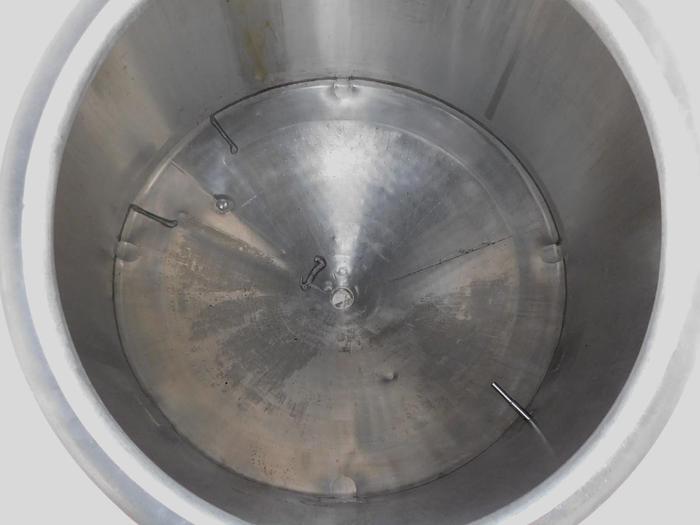

USED 1,000 GALLON APV CREPACO CONE BOTTOM TANK

• ALL STAINLESS STEEL FOOD GRADE CONSTRUCTION,
• 72" DIAMETER X 52" STRAIGHT SIDE
• DIMPLE JACKETED

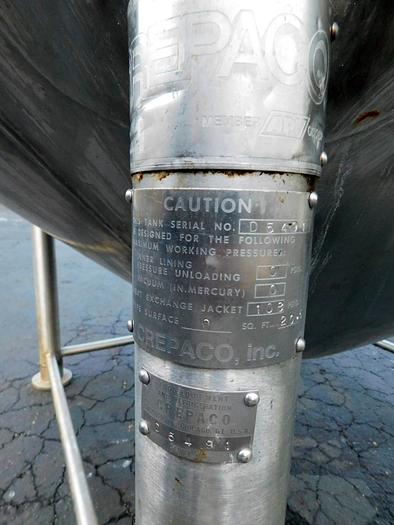

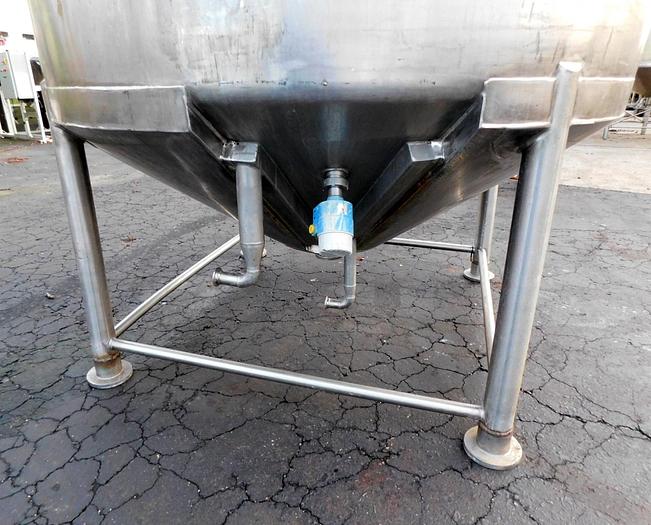

• SHROUDED AND INSULATED CONE BOTTOM 24" DEEP AND FACTORY RATED FOR 108 PSI ON 20.5 SQ FT JACKETED SURFACE
• JACKET HAS TWO 1.5" TRI CLAMP CONNECTIONS
• 4" CENTER BOTTOM DISCHARGE WITH TRI CLAMP CONNECTION AND 11" FLOOR CLEARANCE
• TOTAL HEIGHT 102"

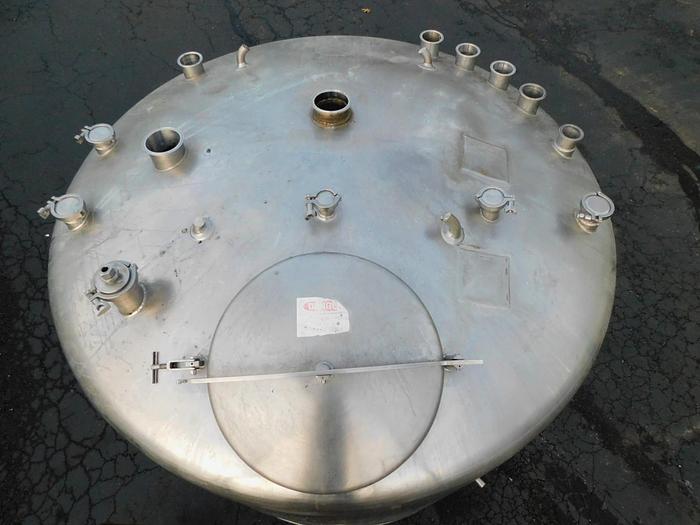

• DISH TOP WITH 18" MANWAY WITH HINGED GASKETED COVER
• 14 TOP INLETS, 6-3", 4-2.5", 1-2", 1-1.5" AND 2 4" WITH TRI CLAMP CONNECTIONS
• 1 FLUSH SEATING TEMPERATURE PROBE ON CONE AND 1 BOTTOM SIDE TEMPERATURE WELL
• FORMERLY USED IN FOOD MANUFACTURING.
