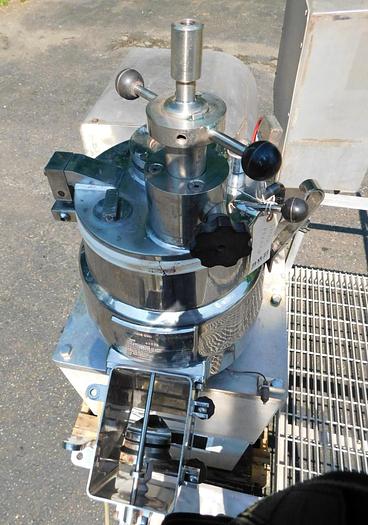

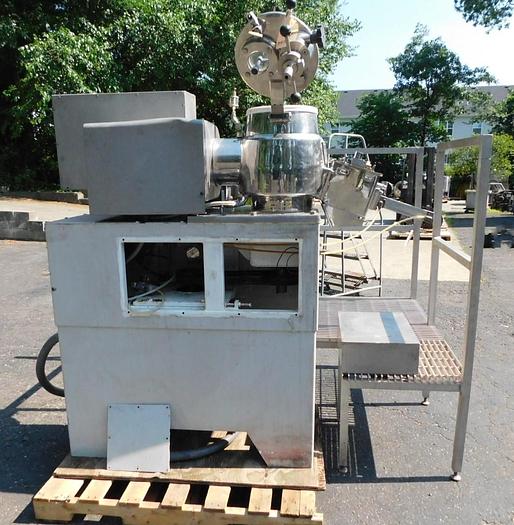

24 LITER BAKER PERKINS GRANULATOR MIXER - S/S - JKTD - UL LISTED

1 - USED 24 LITER HIGH SCHEAR BAKER PERKINS GRANULATOR MIXER

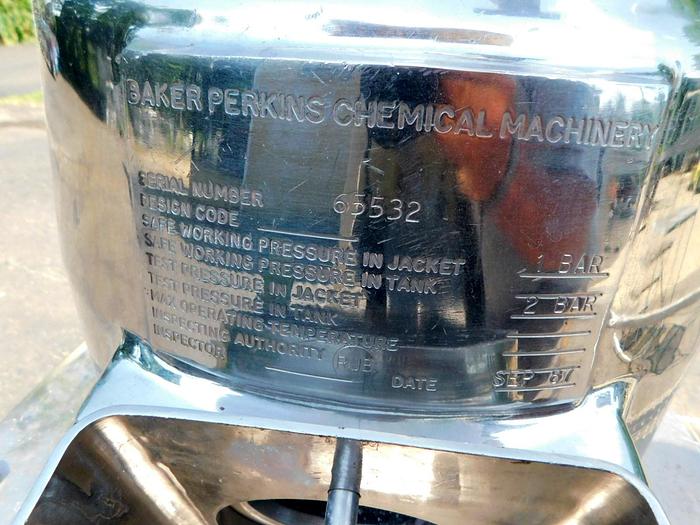

• Sanitary S/S Jacketed Rated for 1 Bar (14 PSI)

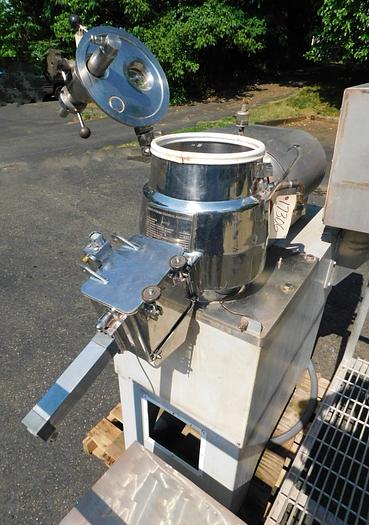

• Jacketed Tulip Shaped Mixing Chamber

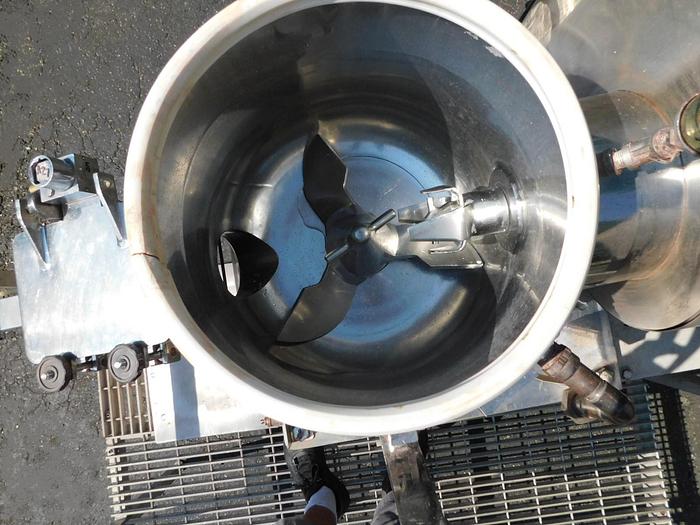

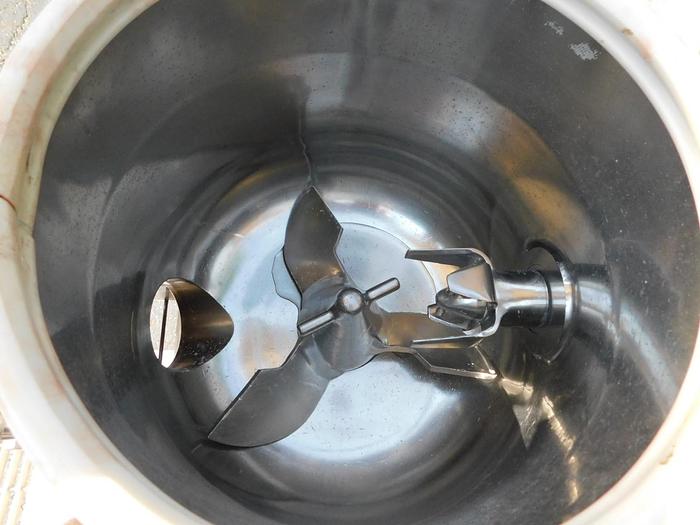

• High Intensity Bottom Driven (3) Arm Mixing Blade
• Side Entering High Speed Breaker Impeller
• Main Impeller Has (2) Speed Drive by Hawker Siddeley
• Approved for Hazardous Locations Under Class 1/ Group C & D Class ii / Groups E, F & G
• 7. 5 /3. 75 HP, 1150/570 RPM, 22/20 AMPS, 208/3 Phase V

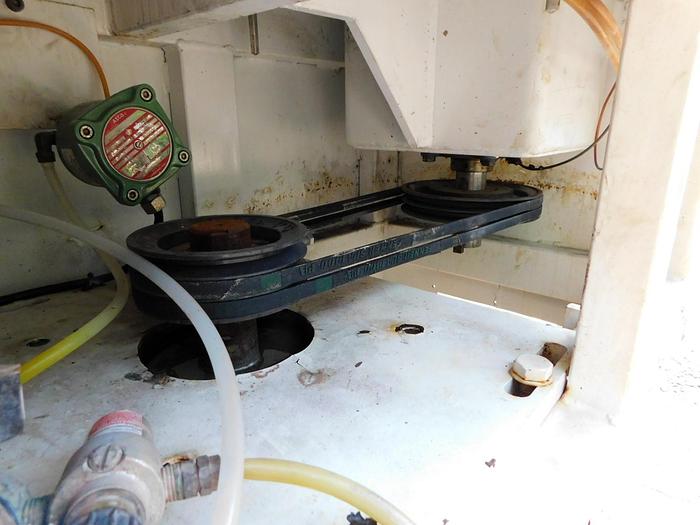

• Belt Driven with (2) Shiv Pulley, 2 HP Breaker Drive

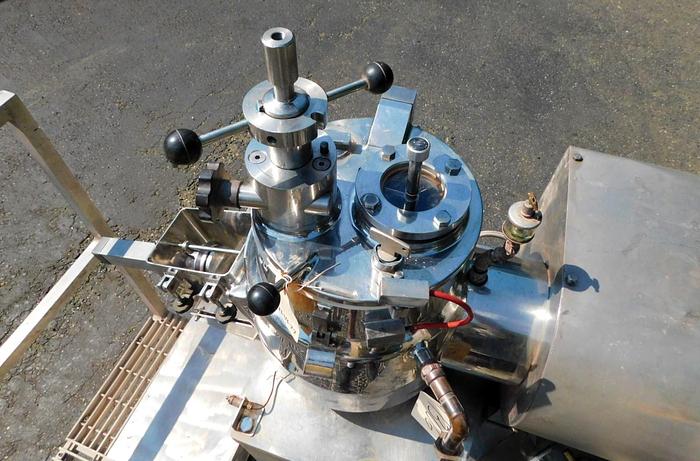

• Mixing Chamber has Hinged Lid with Sight Glass & Wiper
• Manually Operated Internal Spray Nozzle with Adjustable Rotation & Depth Position

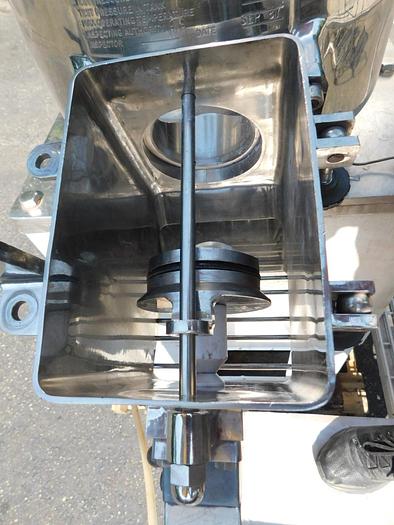

• 4" IN. Bottom Side Discharge with Pneumatically Operated Bowl Contouring Plug Valve Discharging at 42" IN. Floor H with Removeable Discharge Grate

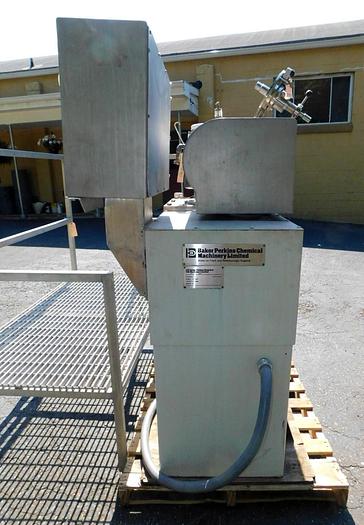

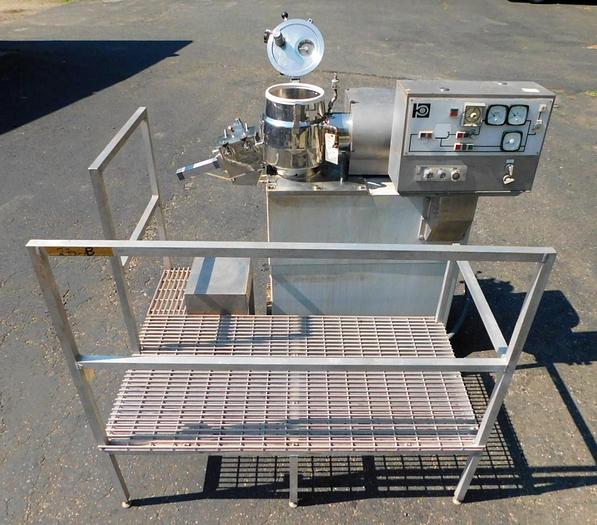

• Cabinet Style Base with Operator Panel

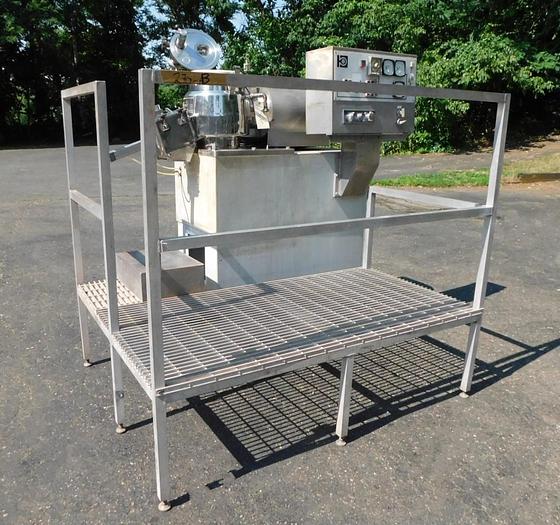

• S/S Mezzanine Work Platform
• OAD 75" IN. L. x 32" IN. W x 74" IN. H
• Formerly Used in Branded Cosmetic Lab
