1500 GALLON MIX TANK - S/S

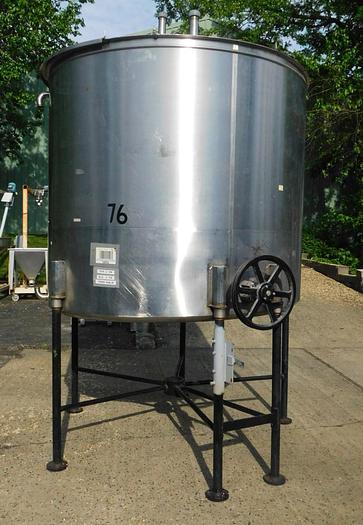

1 - USED 1500 GALLON JLEM MOTOR OPEN TOP S/S MIXING TANK

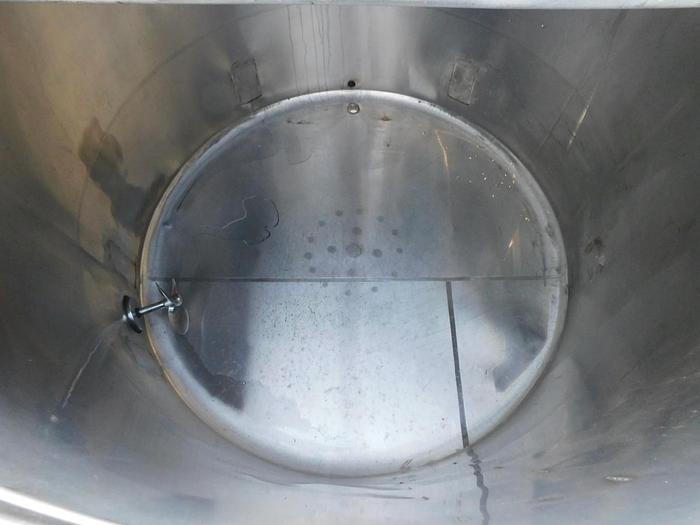

• ALL S/S VESSEL

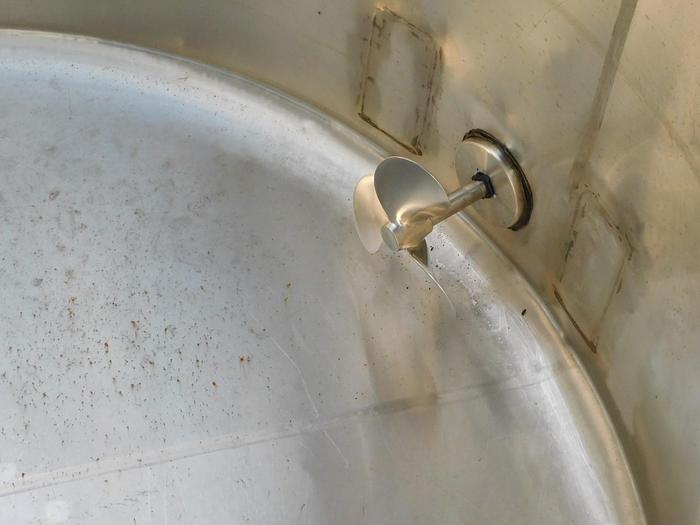

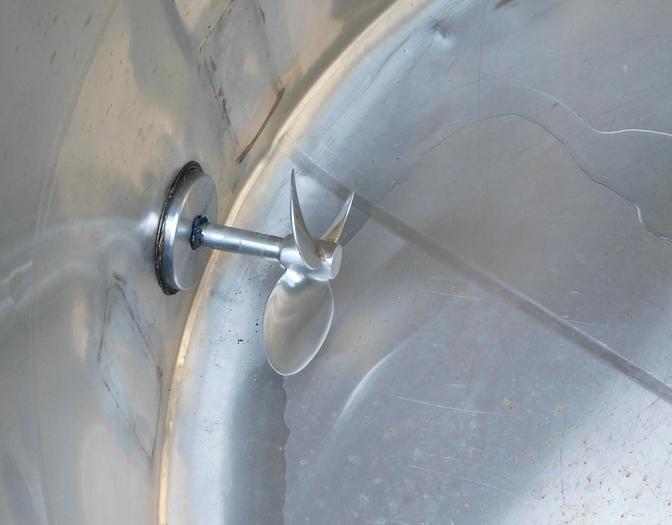

• SIDE BOTTOM PROPELLER 12" IN. (3) THREE BLADE PROPELLER AGITATOR

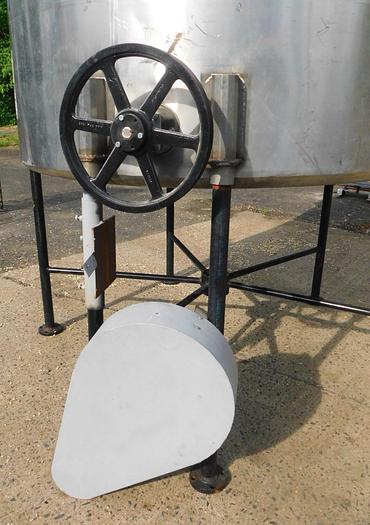

• BELT DRIVEN BY 2 HP MOTOR
• PACKING GLAND SHAFT SEAL & BELT GUARD IN PAINTED STEEL
• DIAMETER 84" IN. x 72" IN. DEPTH x 116" IN. TOTAL HEIGHT

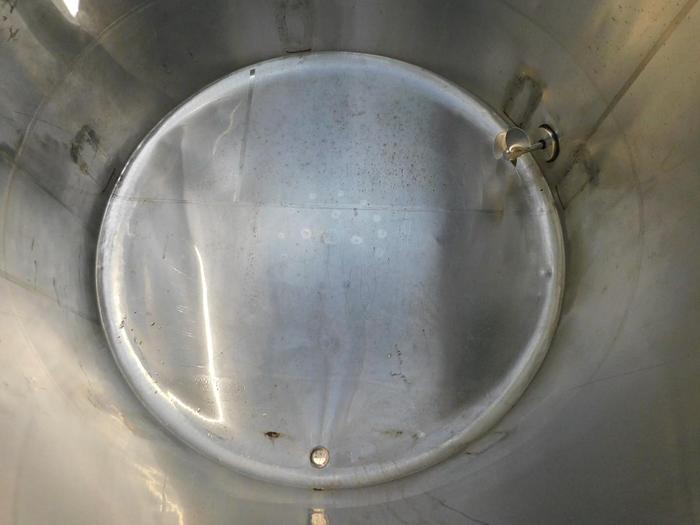

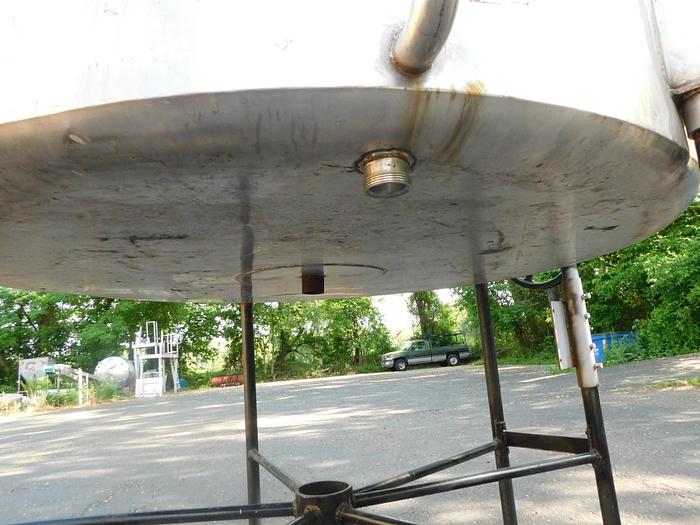

• FLAT SLOPED BOTTOM TO 2" IN. BOTTOM OUTLET
• ACME THREADED BEVEL SEAT CONNECTION AT 42" IN.
• DISCHARGE HEIGHT, 8" IN.

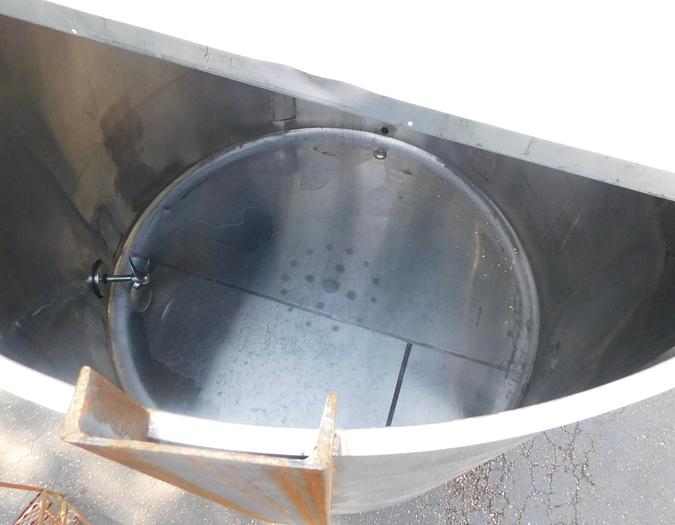

• SIDE MOUNTED STEEL CHANNEL
• MOUNTED ON SIDE WALL AS PORTABLE MIXER MOUNT

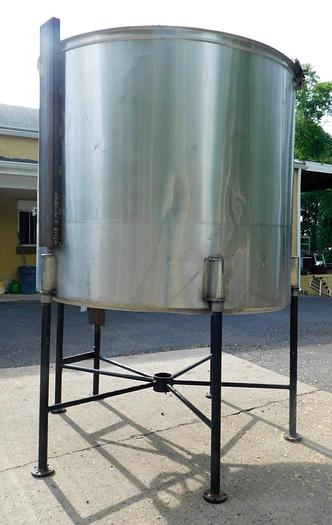

• MOUNTED ON (6) 2" IN. PIPE LEGS PAINTED AND INTERCONNECTED TO CENTER

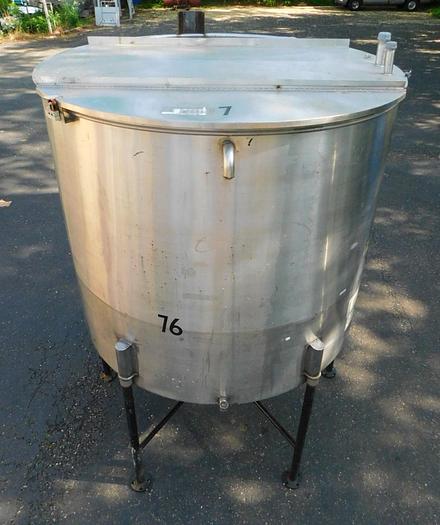

• 2-2" IN. S/S THREADED TOP INLETS ON STATIONARY FULL COVER WITH 1/4" IN. HINGED OPENING AND 1/4" IN. OPEN TOP SEGMENT ON MIXER STATION SIDE
• 2-2" IN. CAPPED BOTTOM & TOP SIDE WALL PORTS WITH ELBOWS

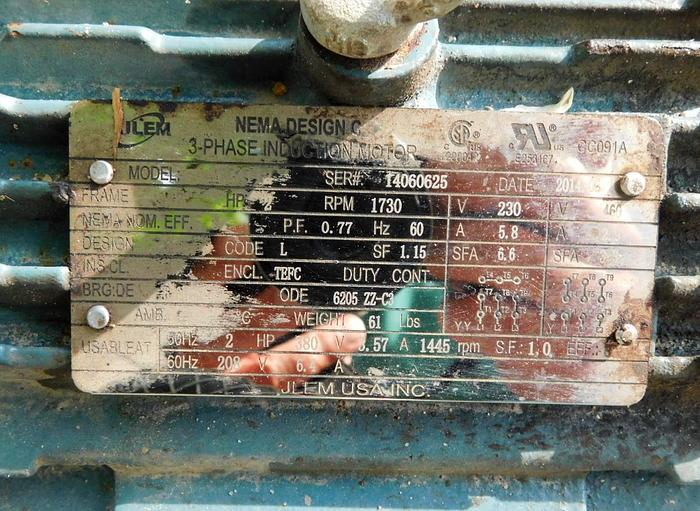

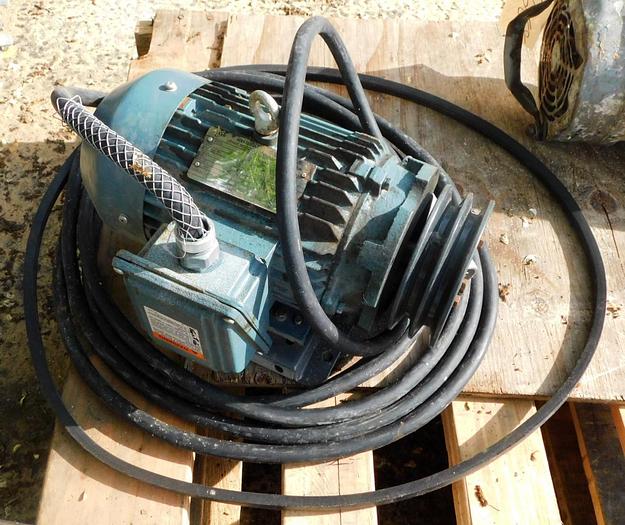

• AGITATOR MOTOR IS DUAL VOLUME 230/460
• 3 PHASE / 60 HZ
• 1730 RPM FOR AGITATOR SPEED OF 500 RPM
• AGITATOR MOTOR MOUNTS ON LEG PLATE WITH GUARD
• USED IN FRAGRANCE MANUFACTURING
