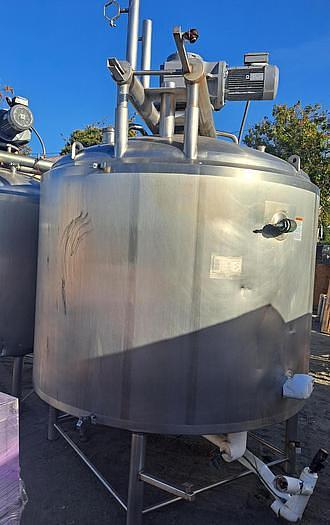

1,000 GALLON APV CREPACO SCRAPER AGITATED TANK - JACKETED

1,000 GALLON APV CREPACO SCRAPE SURFACE AGITATED PROCESSOR TANK

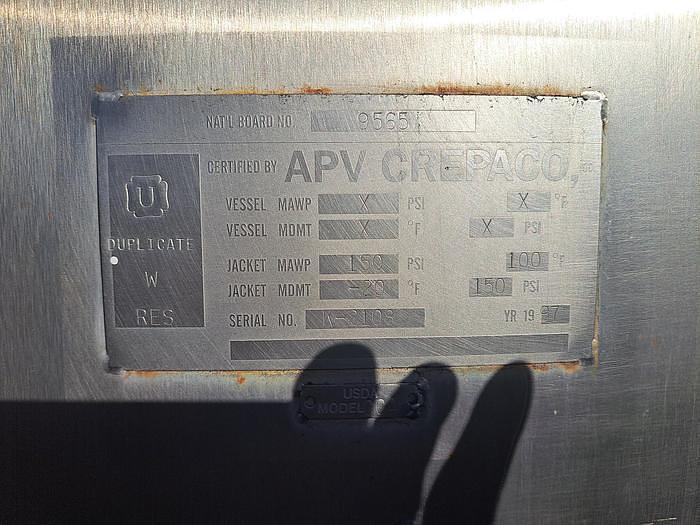

• Jacket Rated 150 PSI @ 100 degrees F
• Minimum metal design temperature (MDMT) rated for -20 degrees Fahrenheit @ 150 PSI

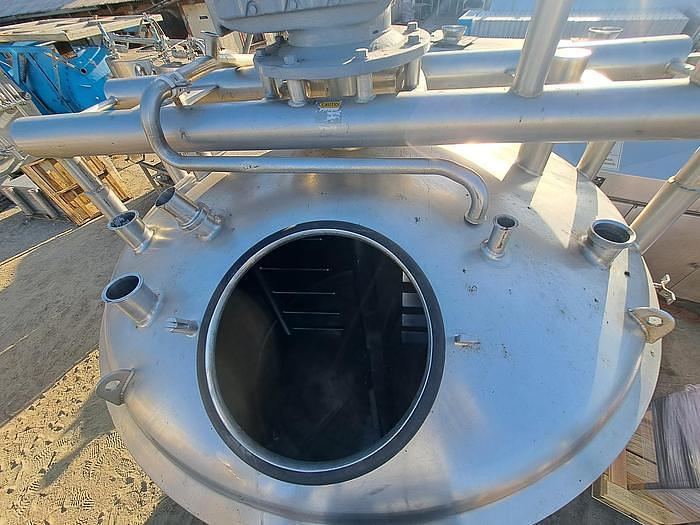

• Dish top with cone bottom l
• 3" diameter center bottom outlet

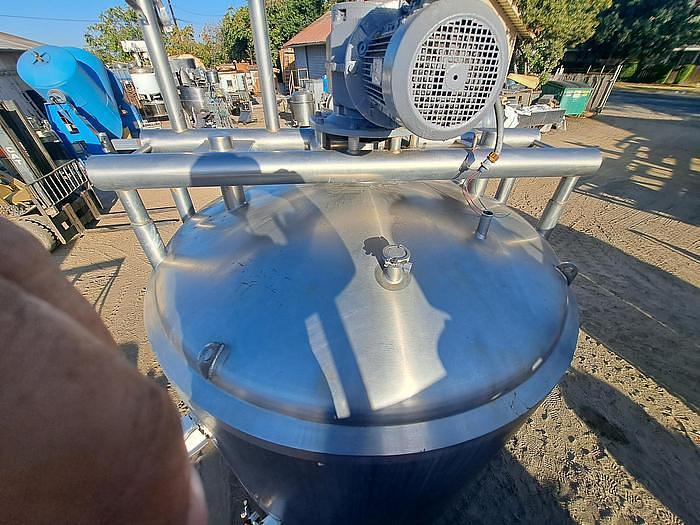

• Vessel is offered with bridge mounted top entering agitation

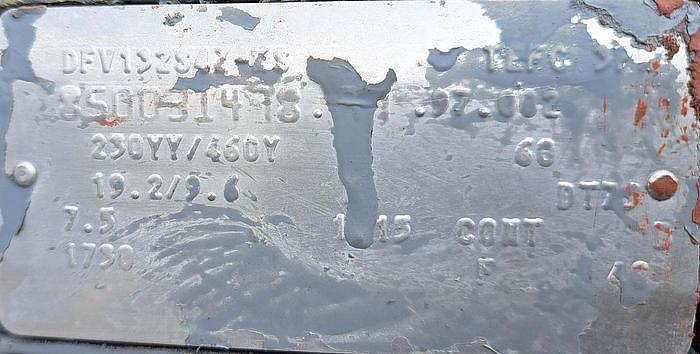

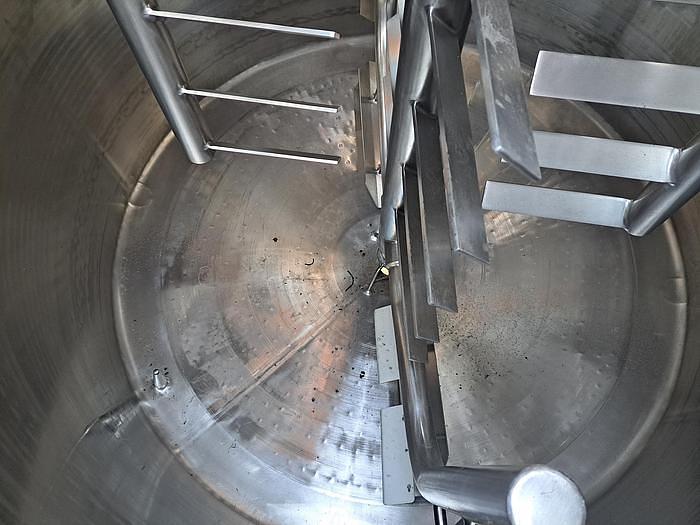

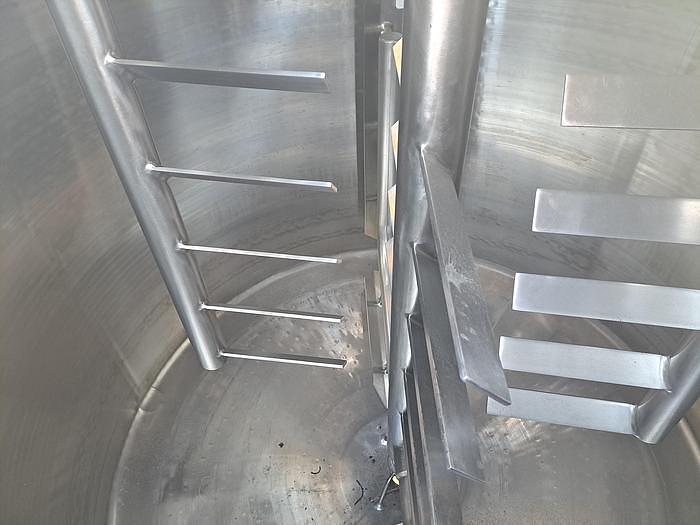

• 7.5 HP Right Angle Gearmotor, driving stainless steel shaft and side scraper agitator

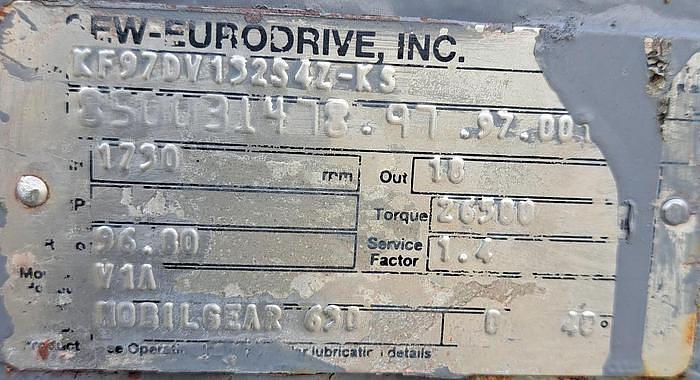

• Drive is rated for 230/460V, 3/60Hz, 1,730 RPM thru 96.80:1 gear ratio, resulting in 18 output RPM
• ASME rated vessel
• National Board number 9565
