6,000 GALLON FELDMEIER MIX TANK - SANITARY S/S - 150 PSI JACKET

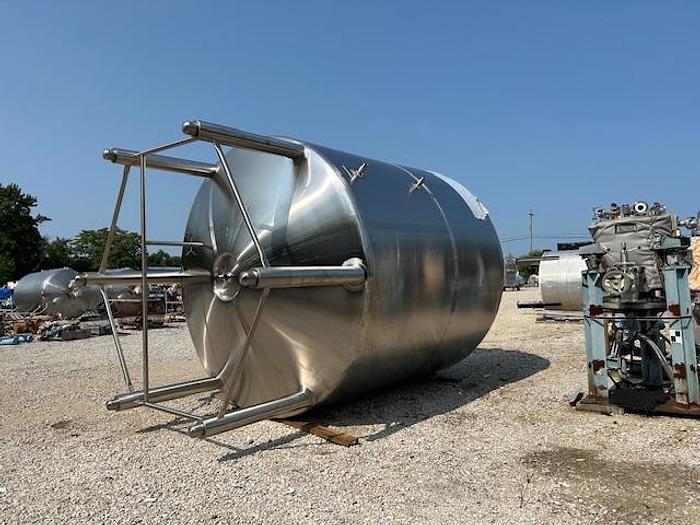

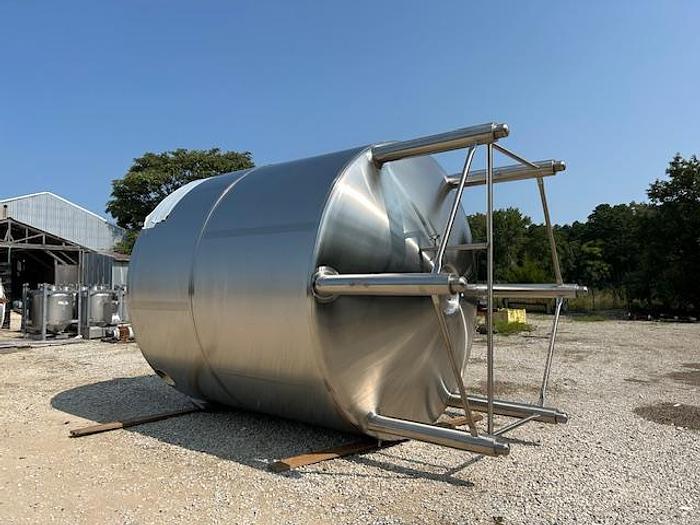

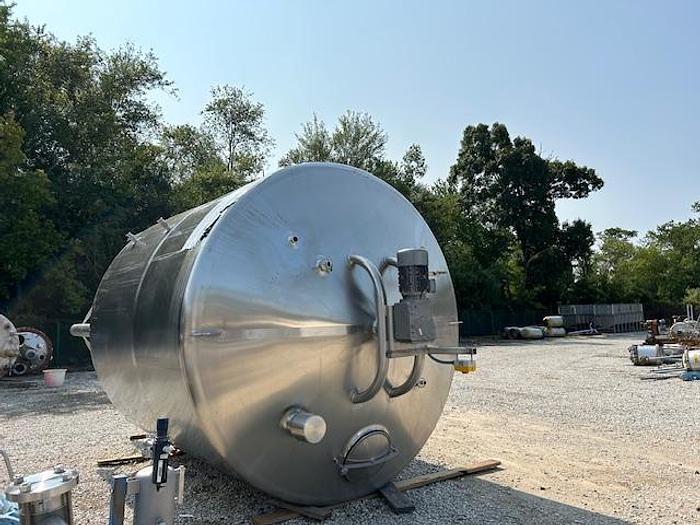

Unused 6000 gallon Feldmeier Vertical Jacketed Mix Tank

• Rated atmospheric internal
• 150 psi Jacket / FV at 300° F
• 125 sqft heat transfer area
• 3A Sanitary Construction
• Vessel is 120" ID X 120" Straight Side
• Dished top and bottom heads

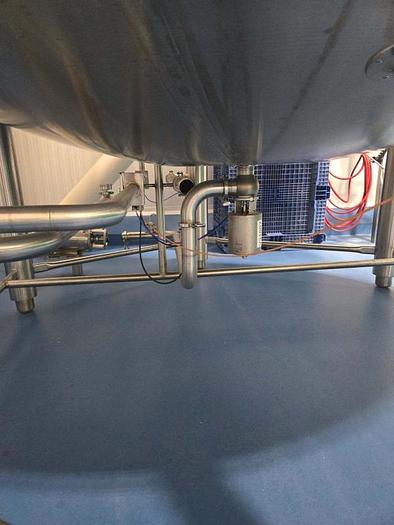

• 3" Center bottom outlet

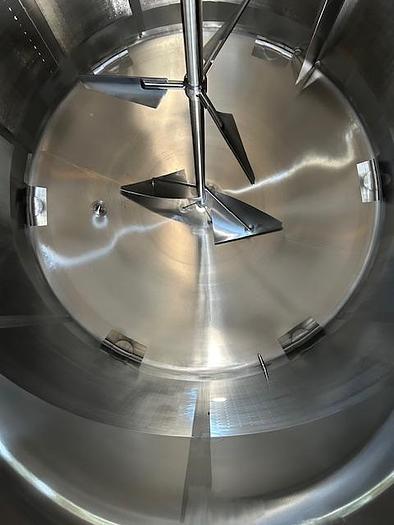

• On center 60” diameter bottom sweep agitator with (1) 42" diameter three blade easy clean turbine.

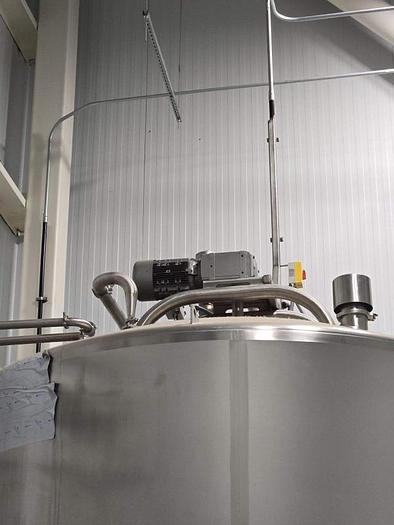

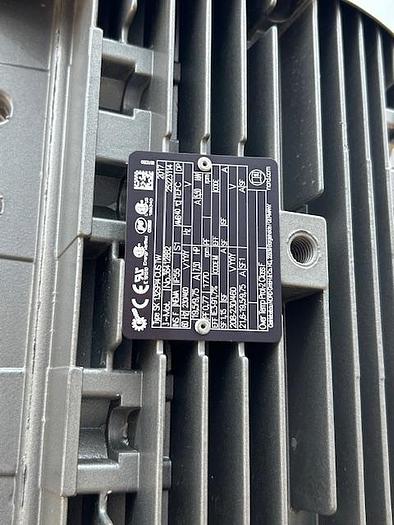

• 7.5 HP Single Speed Inverter Duty TEFC motor operating @ 43 RPM
• 3/60/230/460 volt
• Stainless steel motor bridge mount rails
• Spring loaded CIP seal on agitator shaft, bottom shaft, guide with replaceable nylon bushing
• (2) removable CIP balls
• 20" vaportite manway with hinged cover
• Non-Removable sidewall baffle
• All T304 stainless steel
• Insulated
• Model EPD
• 6 pipe legs
• NB stamped
