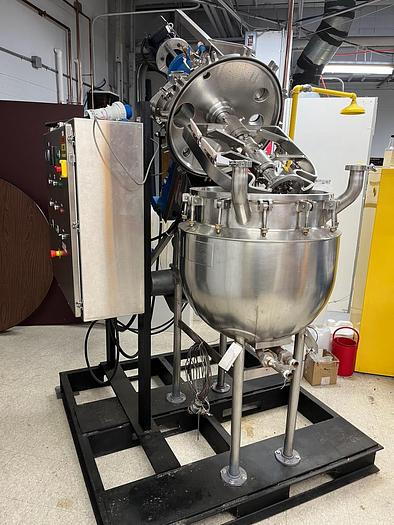

120 LITER / 30 GALLON AGI-MIX KETTLE – S/S – VAC – JKTD

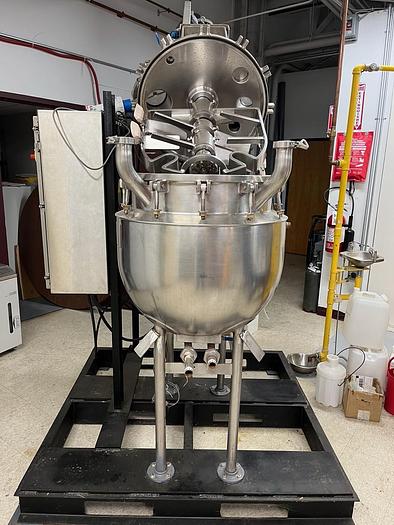

30 Gallon Greerco Triple Motion Agi-Mix Process Kettle

• Recommended maximum working capacity: 30 gallons (114 liters)
• Full holding capacity: 39 gallons (148 liters)
• Stainless steel construction
• Tilt-out vacuum top cover with swing bolts
• Motorized hydraulic power unit
• Vessel is ASME Code Stamped for 20 psi @ 338 deg. F and full vacuum internal
• National Board #2444
• Jacketed vessel rated for 40 psi @ 287 deg. F
• Center bottom discharge with an 1-1/2” flush valve
• Bottom-entering temperature probe
• Domed top cover has ~6” diameter connection with hinged cover, off-center light, and miscellaneous Tri-clamp fittings
• Triple motion agitation system consists of counter-rotating double motion agitator and bottom center high speed homogenizer
• Counter-rotating paddles driven by a 1.5 HP motor
• Homogenizer driven by a 5 HP motor

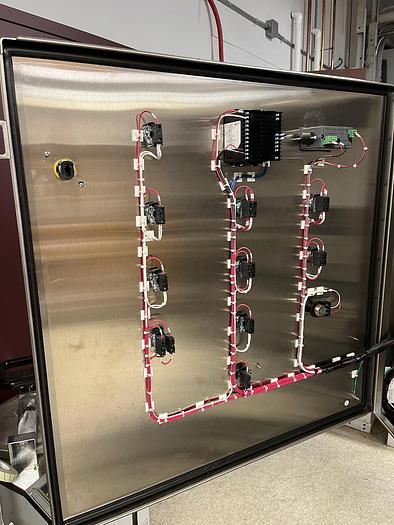

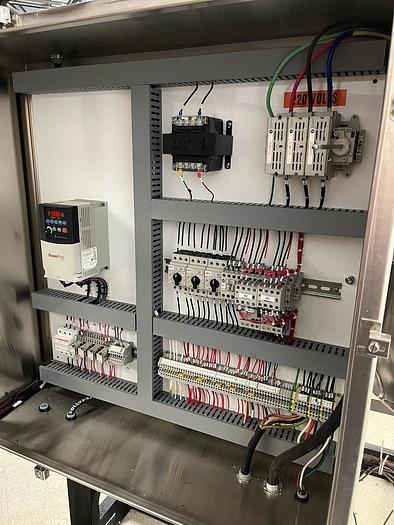

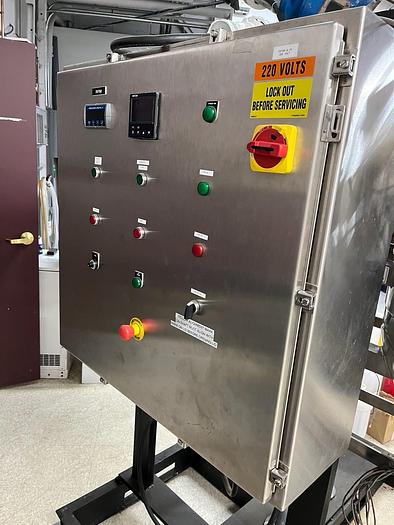

• With Control Panel (Details available on request)

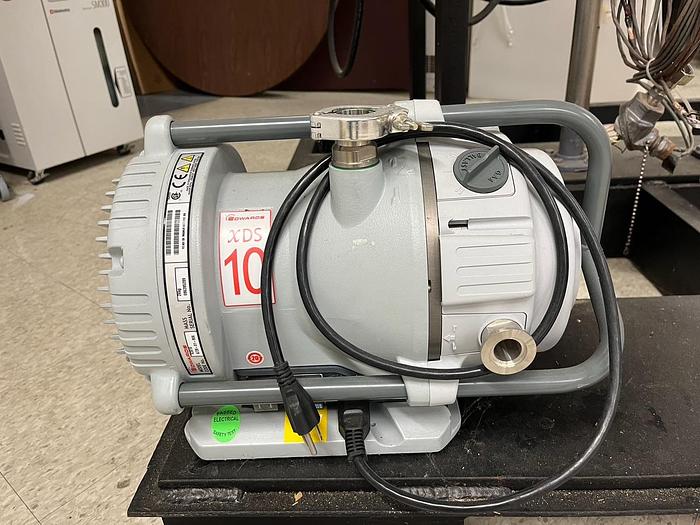

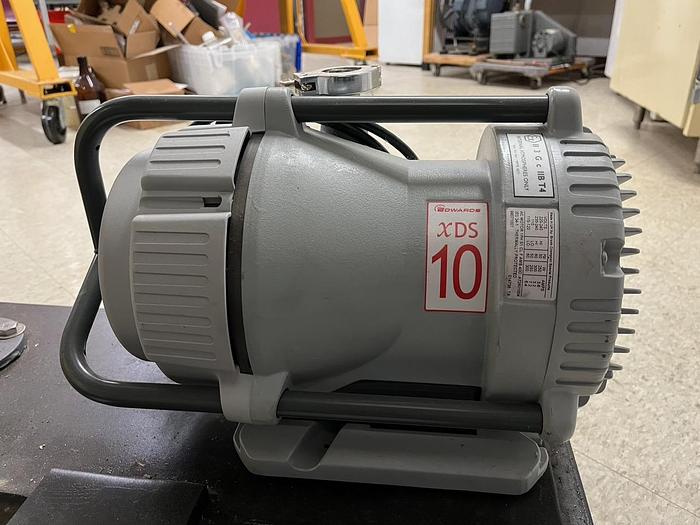

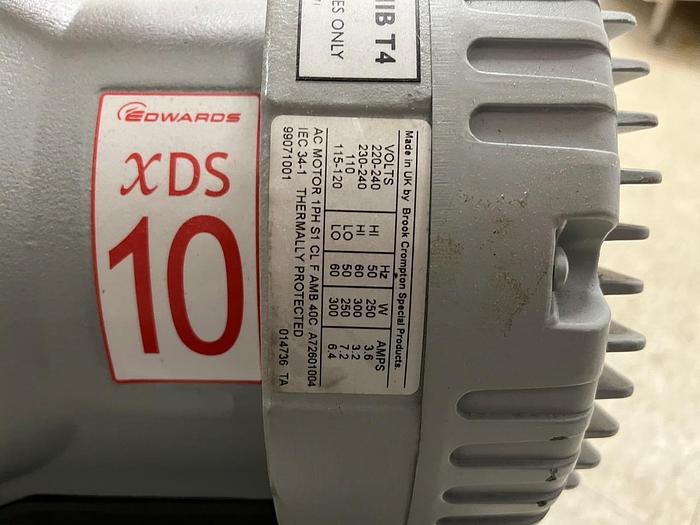

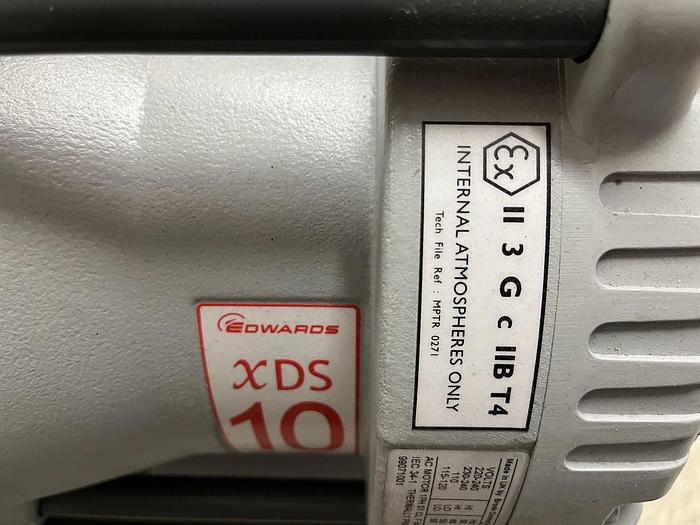

• Edwards XDS 10 Vacuum Pump Included
• All Systems on this machine are operable
• Successfully tested for holding vacuum
