NEW 500 GALLON TRIPLE MOTION MIX TANK WITH HIGH SHEAR DISPERSER - S/S - JACKETED
or
Call 216-409-1394
Description
NEW 500 Gallon Triple Motion High Shear Mix Tank - 316L S/S - 75 PSI Jacket
- Interior Contact Surfaces: 316L Stainless Steel with #4 Finish
- Exterior Non-Contact Surfaces: 304 Stainless Steel with #4 Finish
- Heat Transfer Surface: Side & Bottom Stainless Steel Dimple Jacket Rated 75 PSI (ASME/NB Code Stamped)
- Insulation: 2" Thick Rockwool

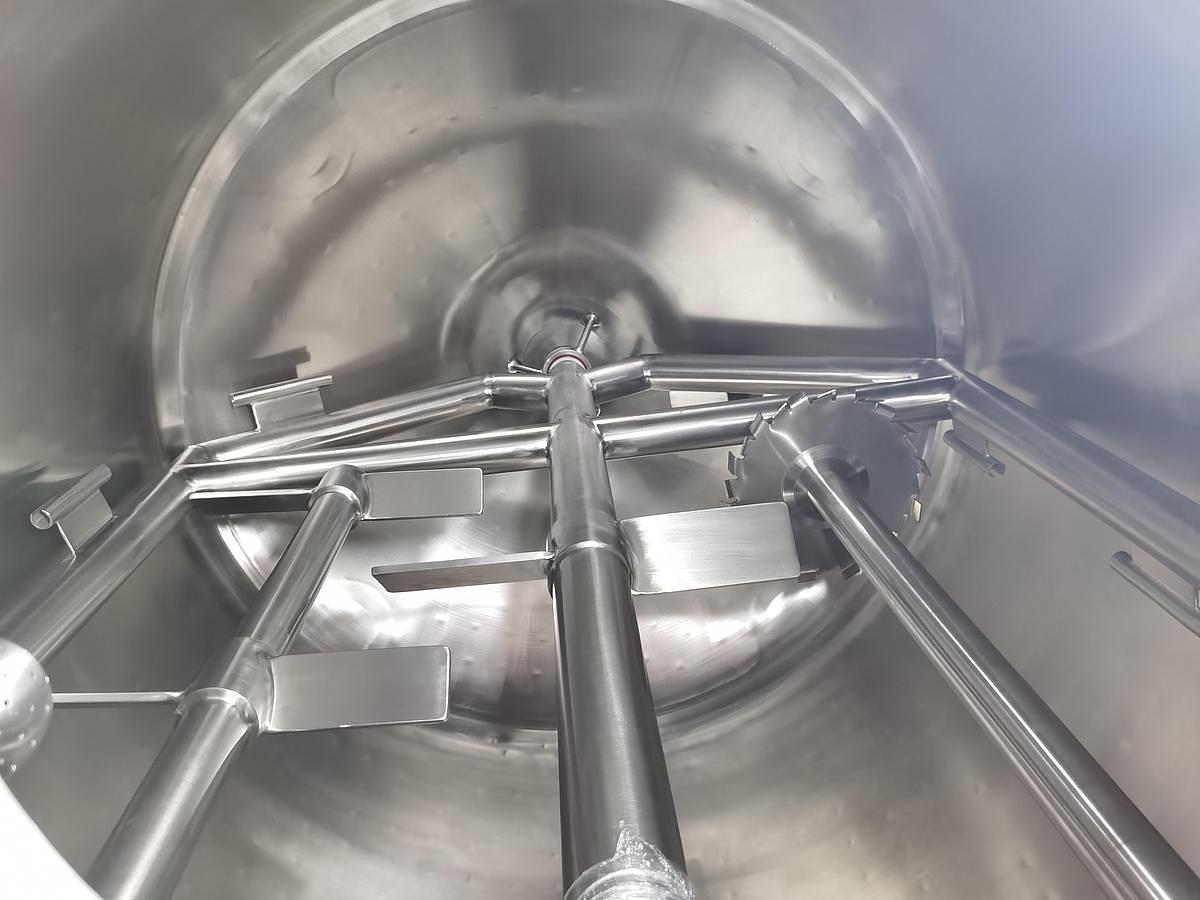

- Top Mount Triple Motion Agitation Consisting of
- 30 HP High Shear Disperser (1750 RPM)
- 7.5 HP Side & Bottom Anchor Sweep Blade (30 RPM)
- 3 HP Offset Paddle Agitator (56 RPM)
- UL Listed Motors
- Tank top: Dished head with manway, CIP cleaning.
- Tank bottom Conical with 15 or 30 degree slope and center outlet, flat bottom structure optional.
- Inlet/outlet ports Sanitary clamp connections.
- Legs Adjustable stainless steel legs.
- With Ladder

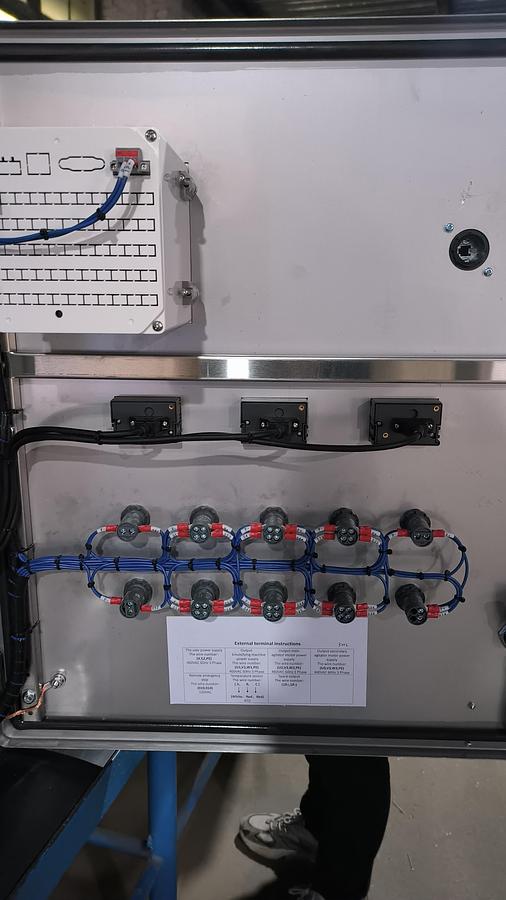

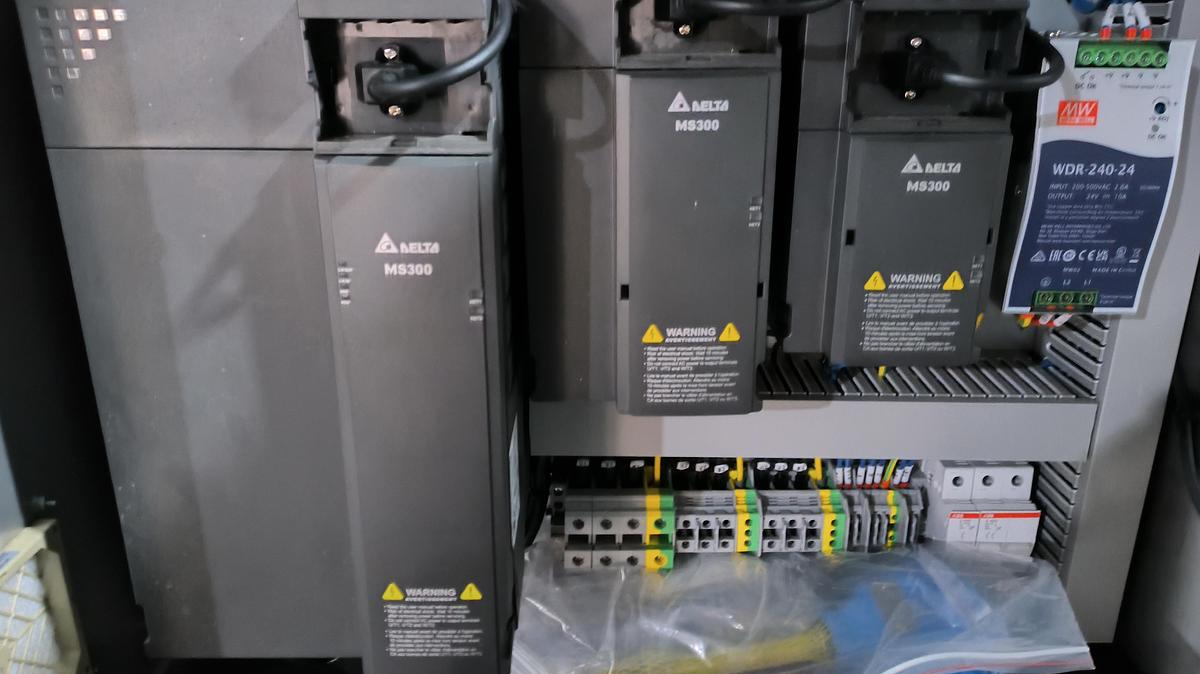

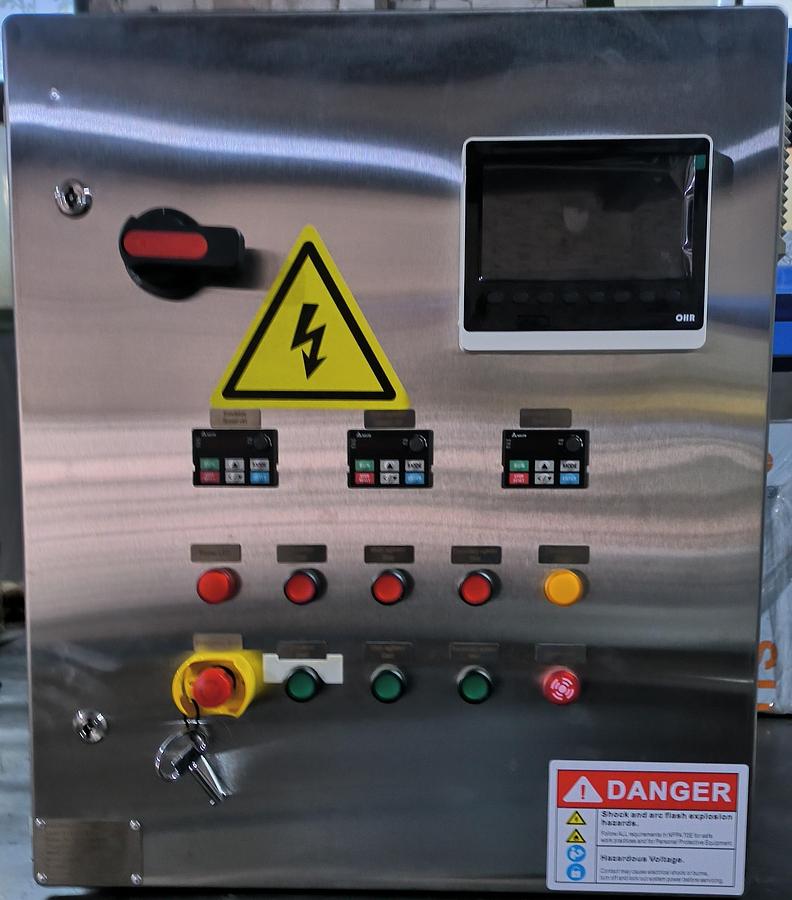

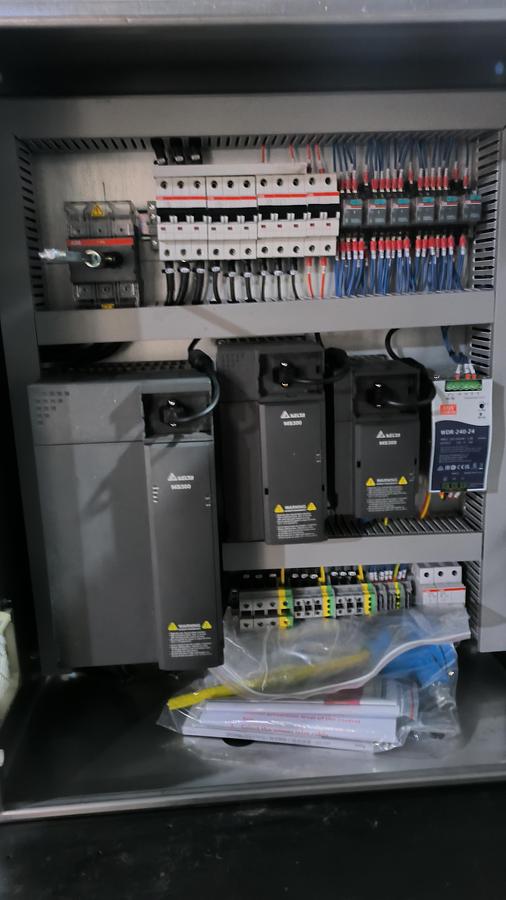

Shipping Dims: 134" x 69" x 77" 3,527 lbs +Controller: 32" x 24" x 22" 99 lbs

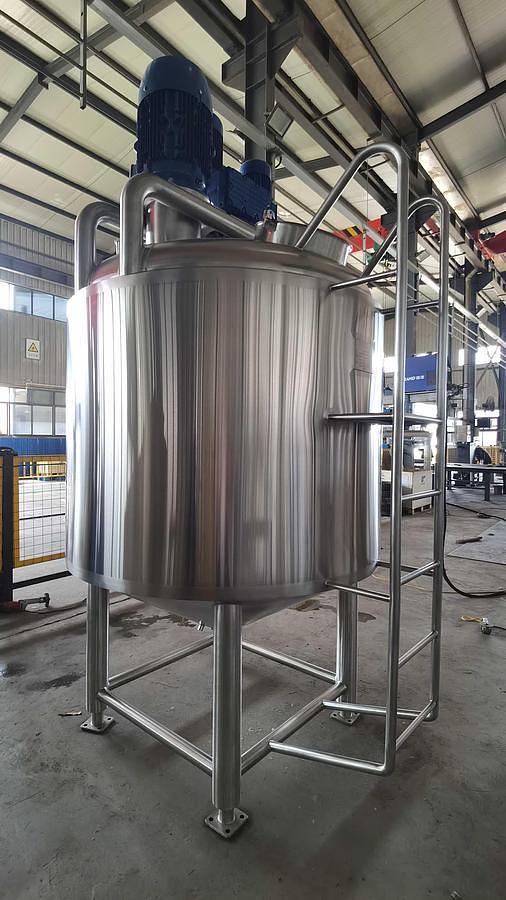

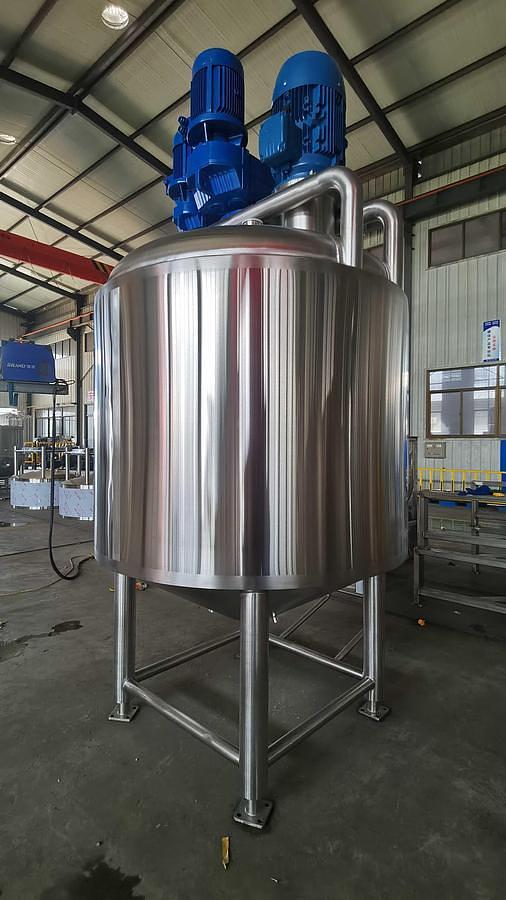

Photos show a 300 gallon and are for reference purposes only
Specifications
| Manufacturer | Hongda |
| Model | Mixing Tank |
| Year | 2025 |
| Condition | New |
| Stock Number | 11440 |
| Size (smallest to largest) | 500.00 |
