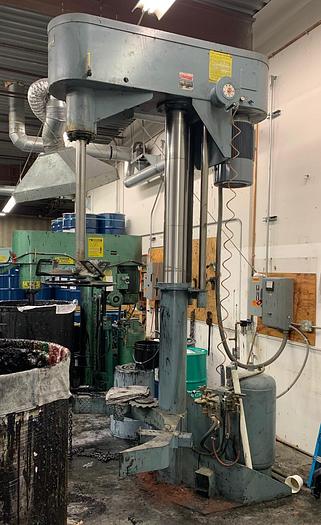

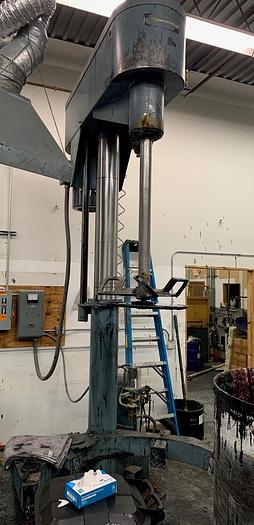

30 HP SCHOLD CO-AXIAL HIGH SPEED DISPERSER – V/S (#9677)

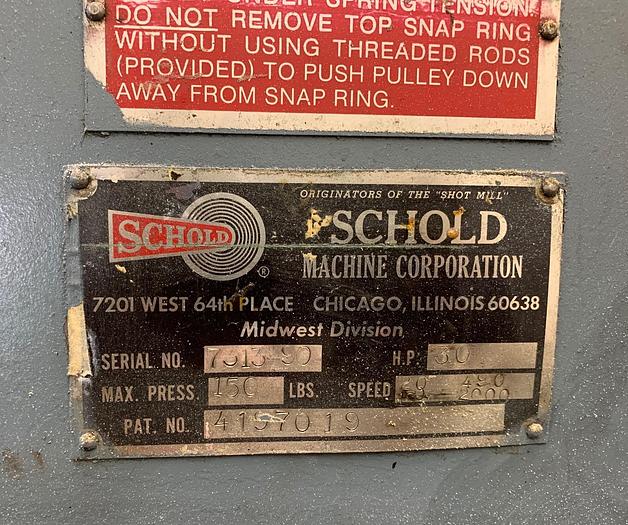

(1) used 30 hp Schold Co-axial High Speed Disperser » Serial number 7313-90 » Floor Mount, air over oil lift » stainless steel shaft » High speed blade and slow speed sweep » 30 hp motor, 3 phase, 230/460 voltage. » Mechanical variable speed » High speed shaft – 80 – 2000 rpm » Slow speed shaft 20- 490 rpm » Includes tank holder and chain, with pneumatic tightening valve.

» Equipped with Square D motor starter, size 3 motor starter

» Overall height in down position: 88.5"

» Distance from high speed blade to floor: 10.5"

» Clearance under the blade to floor: 8.75"

» Overall height in up position: 145.5"

» Clearance in up position: 65.25"

» Unit was test run in our shop and video is available.
