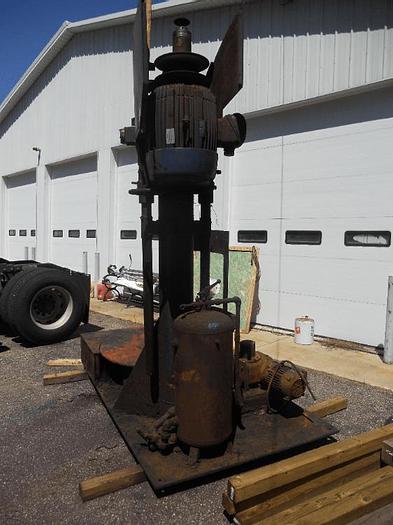

60 HP JAYGO HIGH SPEED DISPERSER WITH TURN TABLE – #7637
orCall 216-409-1394
Description

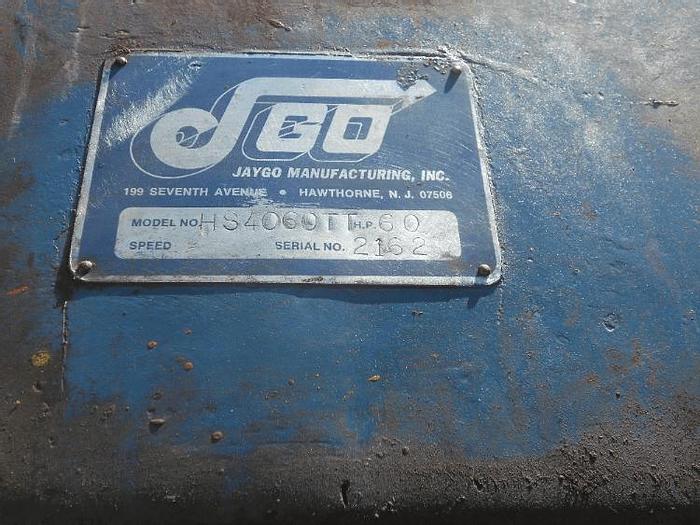

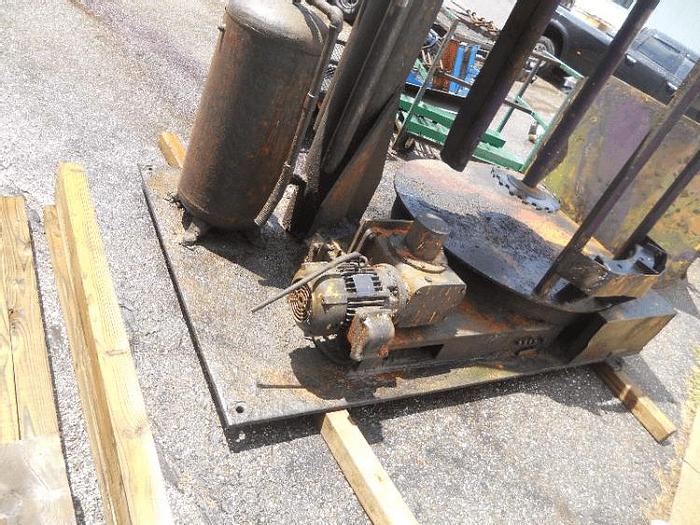

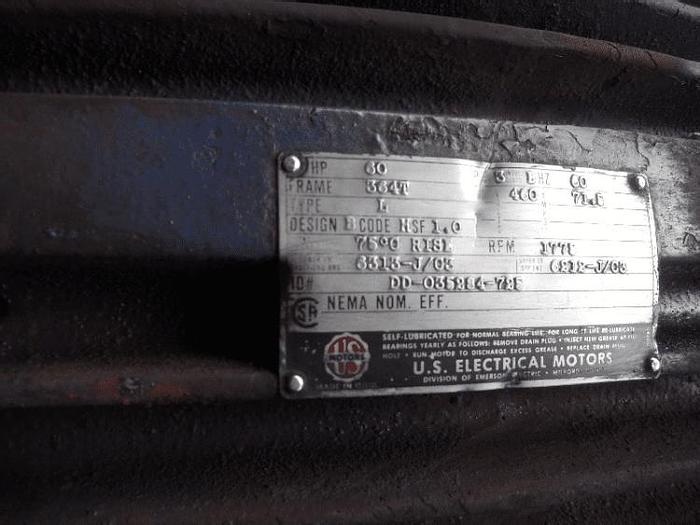

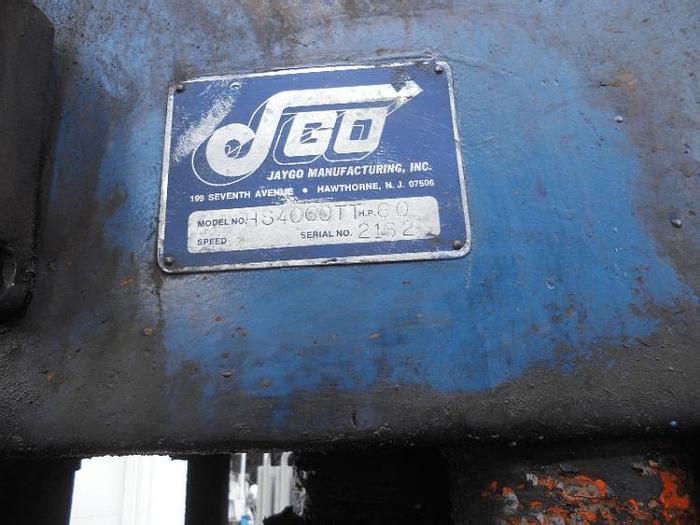

1 – used 60 HP Jaygo Disperser. Model HS4060TT. Floor mount with lift. Approx. 3 in. dia. x 46 in. long shaft with 16 in. dia. blade. Base with turn table. Variable speed. 60 HP 3/60/460V 1775 RPM 17.5 amp motor. With baffle and scraper blade. Serial #2162. F.O.B. – LOCATION LENGTH OF SHAFT – 46″ THE SPACE BETWEEN COLUMN AND UPPER BEARING HOUSING ON THE SHAFT IS APPROX. 27-28 IN. LENGTH OF THE LIFT CYLINDER – NOT SURE BUT WE WOULD ENOUGH TO CLEAR THE SHAFT LENGTH. (LOOKS TO BE 46″) DISTANCE FROM SHAFT TO GROUND IN LOWERED POSITION – 9″
Specifications
Manufacturer | Jaygo |
Model | HS4060TT |
Condition | Used |
Stock Number | 7637 |
Size (smallest to largest) | 60.0 |
