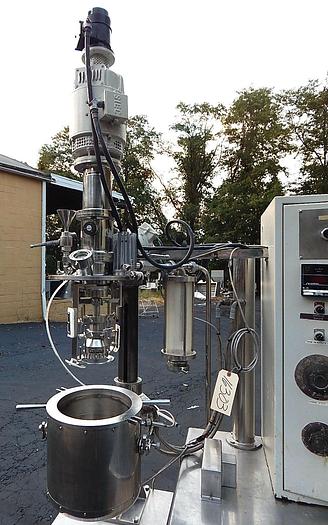

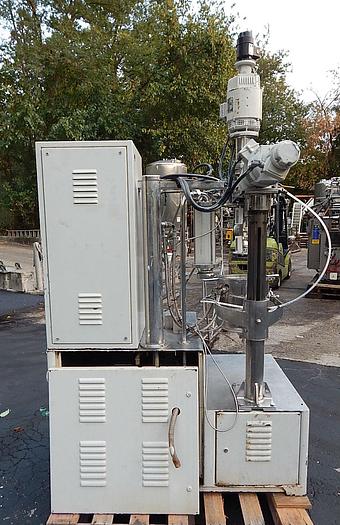

PRESSCO LAB TURBO EMULSIFIER – TRIPLE MOTION MIXER – VACUUM – JACKETED (#9764)

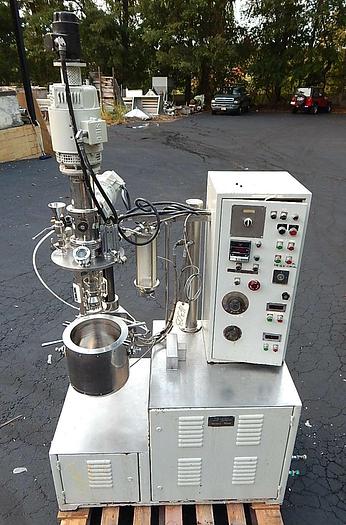

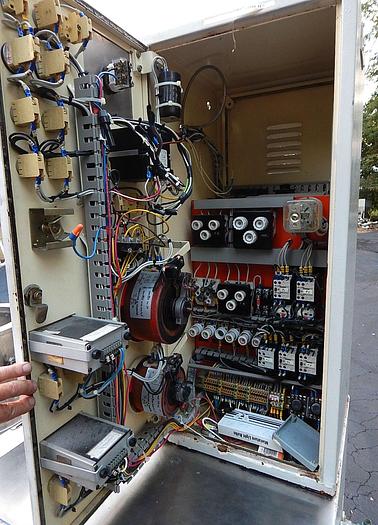

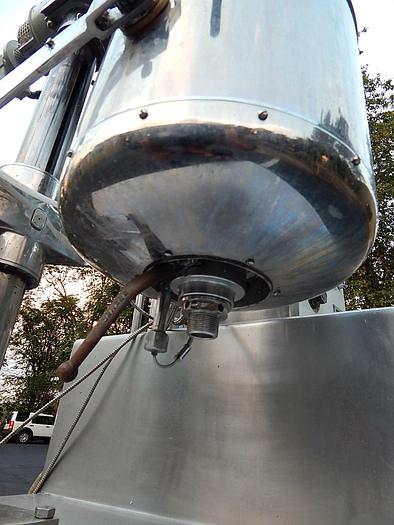

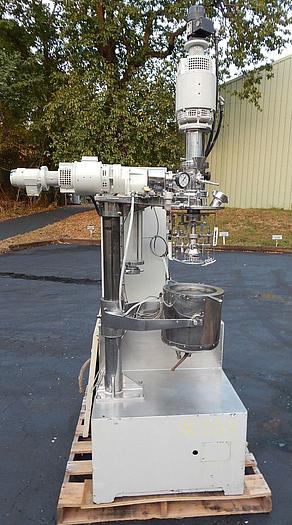

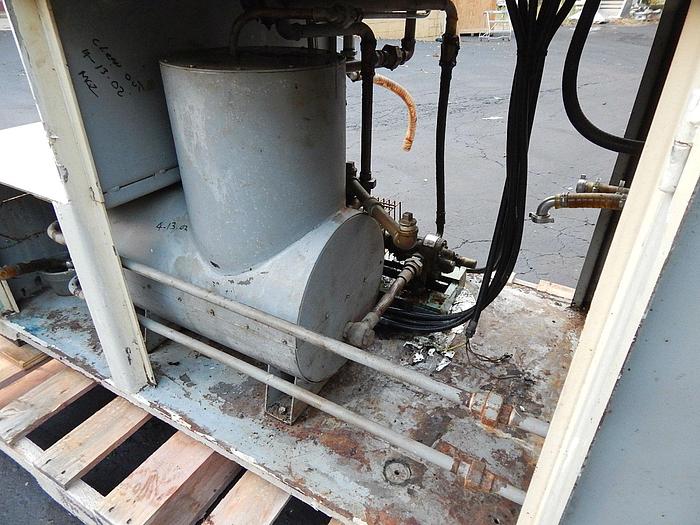

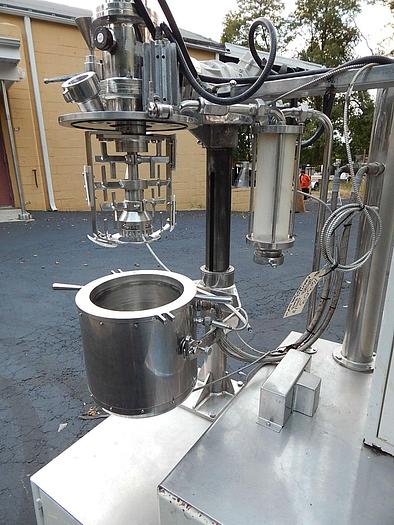

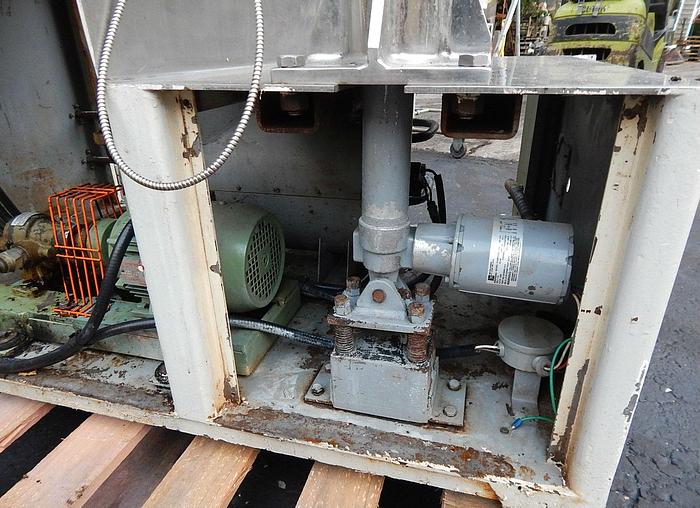

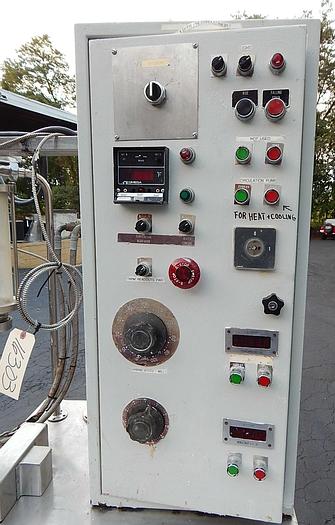

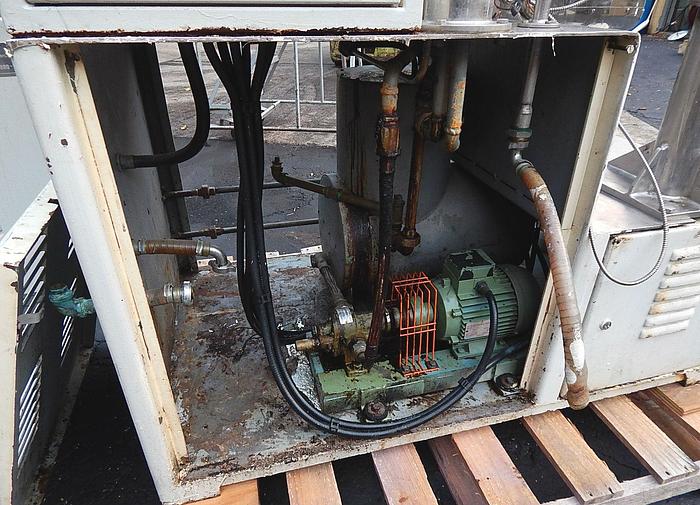

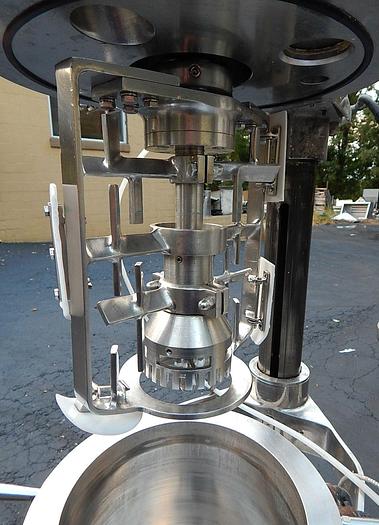

Laboratory “TE.3 Turbo Emulsifier” By Pressco Engineering, Inc.  Fully jacketed and insulated mixing vessel with triple motion agitation including scraper agitator with hinged teflon scrapers, counter rotating blades (3 to 63 RPM) and high speed 70 mm dia. homogenizer (0-2000 RPM).  12 liter total volume with working capacity from 2 to 7 liters.  All agitators are variable speed.  Vessel is mounted on powered lift and is 250 mm in. dia. and 270 mm straight side.  Flat gasketed cover allows internal vacuum service in vessel rated to 30 torr.  Internal light, sight glass and vacuum outlet including acrylic receiver chamber (vacuum provided by user), on board 3 kw electric fluid heating system and recirculating pump piped through vessel jacket and rated for maximum temperature of 130 deg. C.  Mfg. rates unit for maximum CPS of one million and maximum product density of 2 kg/dm 3, internal temperature probe and center bottom outlet with ball valve.  Inlet and outlet lines for vessel cooling from owners source.  Mounted on factory cabinet base with control panel and four opposing service doors.  Factory dimensions 1400 mm x 900 mm x 2060 mm high @ 615 kg.  Last used in a branded cosmetics lab.  F.O.B. – LOCATION
