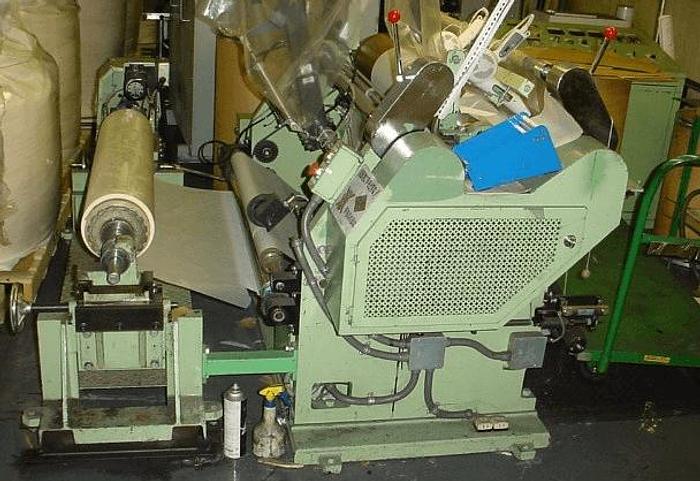

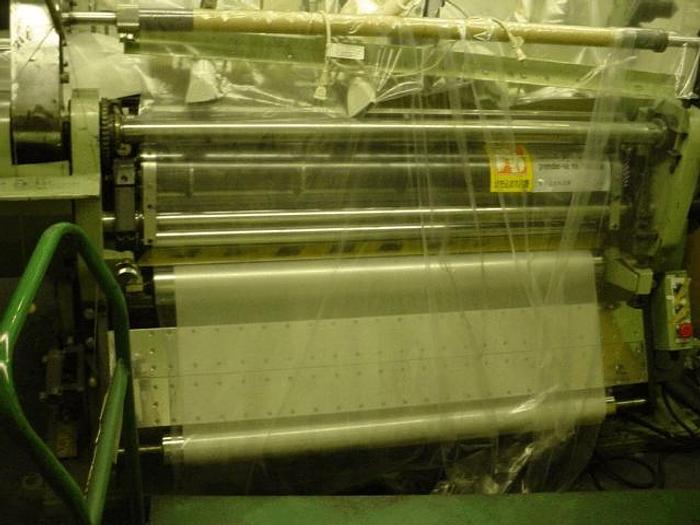

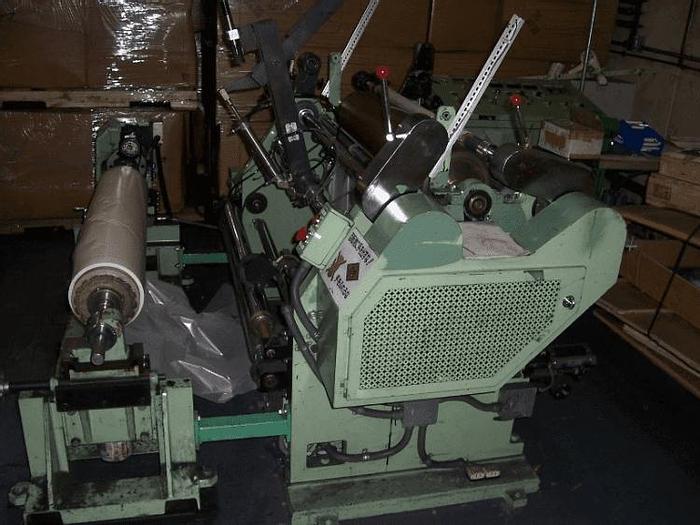

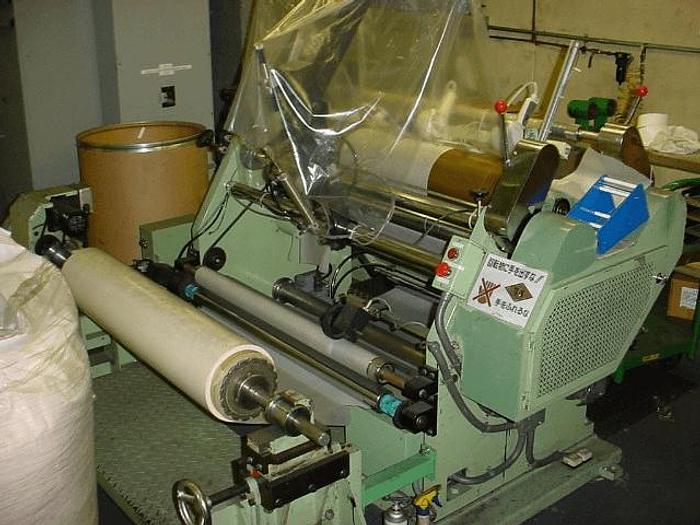

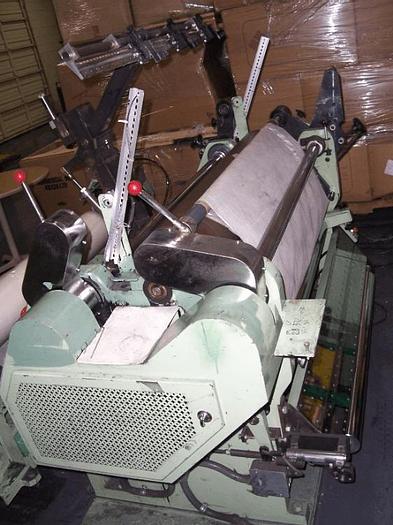

GODO KIKO SLITTER – 1050 MM ROLLER LENGTH – MODEL 431B

orCall 216-409-1394

Description

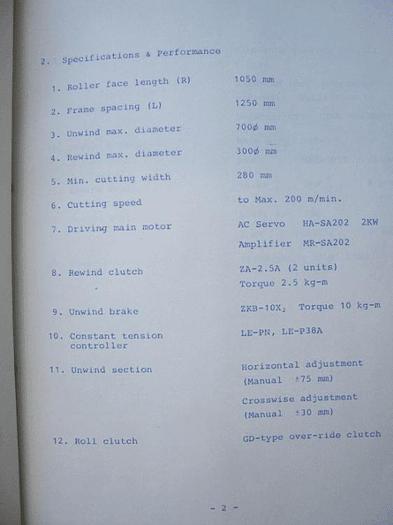

1 – used Godo Kiko Slitter model 431B. According to manufacturer’s literature this slitter is designed to rewind thin film that is comparatively uniform in thickness in narrow (width) and small winding style. For rewinding the two-shaft rewind by surface center compatible driving is adopted and also for central driving each shaft is independently equipped with the powder clutch thus enabling fine adjustment. In addition one surface driving roll is diameter enlarged to improve the operability and same time the roller material is taken into consideration for the film (as a material). Furthermore for the cutting system of this slitter the flexing shear cutting system or the flexing laser cutting system can be selected. Roller face length: 1050 mm. Frame spacing: 1250 mm. Unwind max. diameter: 700 mm. Rewind max. diameter: 300 mm. Min. cutting width: 280 mm. Cutting speed: to max. 200 m/min. Main motor: 2 kw AC Servo HA-SA202 amplifier MR-SA202. Rewind clutch: ZA-2.5A (2 units) Torque 2.5 kg-m. Rewind clutch. Constant tension controller: LE-PN LE-P38A. Unwind section: Horizontal adjustment (manual +/- 75 mm) Crosswise adjustment (manual +/- 30 mm). Roll clutch: GD-type over-ride clutch. Additional information available from technical documents. Power requirements: 3/60/220 volt. F.O.B. – LOCATION

Specifications

ManufacturerGodo Kiko Co. LTD.
Model431B
ConditionUsed
Serial Number431018.0
Stock Number8299
Size (smallest to largest)0.0
