600 GALLON MUELLER REACTOR SANITARY S/S – 14.9 INTERNAL/75 PSI JACKET – #5283
Description

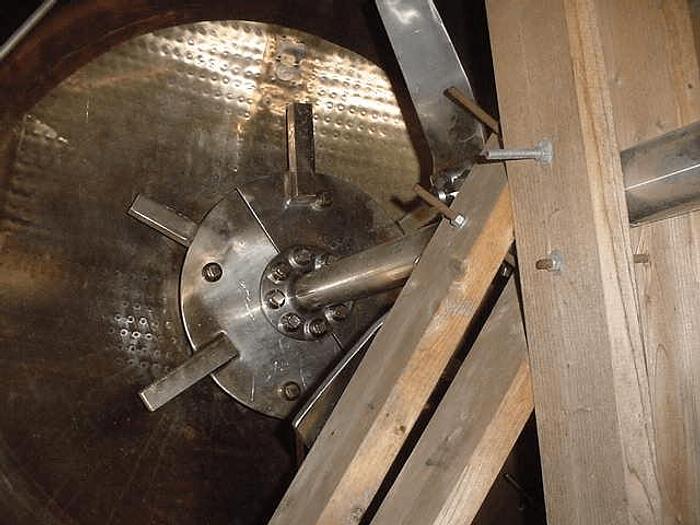

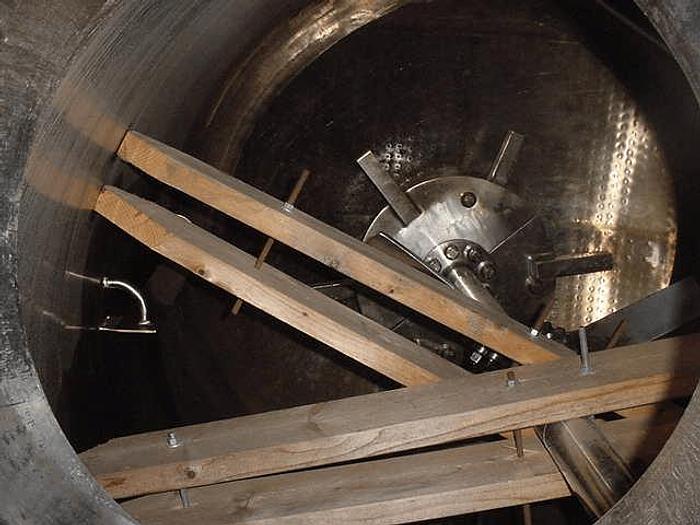

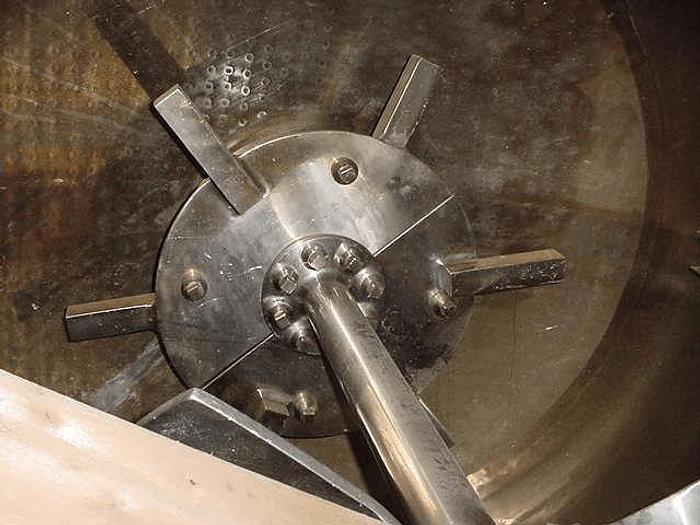

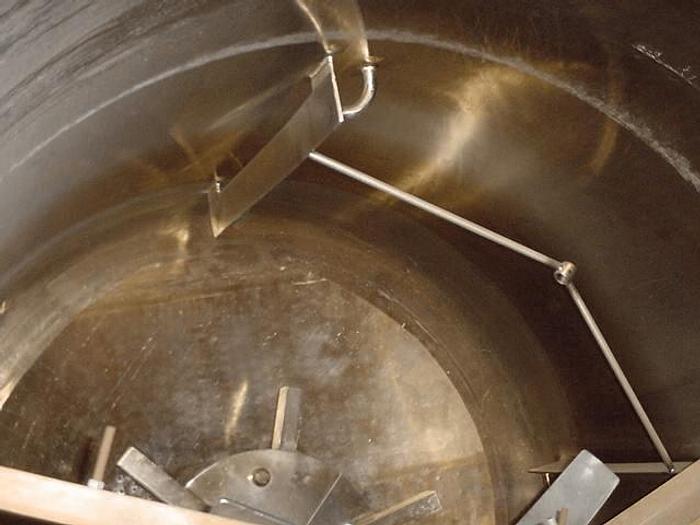

1 – used 600 gallon/2300 liter Paul Mueller sanitary stainless steel Reactor. Model F. With fully jacketed body rated 75 psi at 300 deg. F (NB stamped). Shell rated 14.9 psi internal (rating appears on drawing only). Approx. 60 in. dia. x 54 in. straight side with dished heads. Approx. 11 15/16 in. deep bottom dish. 4 in. center bottom discharge with Pittsburgh air actuated flush seating ball valve. Insulated an shrouded tank body with 2B external finish. 150 grit internal polish. (4) 3 in. x 28 in. long internal baffles. Top dish head with 18 in. manway and hinged dome cover with central sight glass and clamp down closures. (4) top inlets with tri-clamp connections (3) 2 in. and (1) 3 in. Designed to mount through deck on load cells or requires legs from existing body flange. Top center mounted 15 HP 3/60/460VLightnin agitator model 73-S-15. Right angle design. 190/80 final RPM. Agitator has (6) blade 28 in. dia. lower turbine. (3) blade 20 in. dia. upper turbine. Approx. 16 in. dia. top mounting flange for agitator. Top 6 in. sight glass with mounting for Krauss Hinds inspection light. Prior service – pharmaceutical application. Certified drawing on file. F.O.B. – LOCATION
Specifications
Manufacturer | Mueller |
Model | MODEL F |
Condition | Used |
Serial Number | P8084-2 |
Stock Number | 5283 |
Size (smallest to largest) | 600.0 |
